When you create an Informatica bundle for a Spark project in the Prophecy transpiler, you can analyze, change, and validate your migration before the transpilation begins.

​
Prerequisites

To complete this tutorial, you first need to:
  • Export your Informatica workflow.

​
Export from Informatica Designer

To export your Informatica workflow from your Informatica PowerCenter Designer:
  1. Navigate to the workflow you want to export.
  2. On the top navigation bar, click Repository.
  3. Click Export Objects.
  4. Navigate to where you want to save your file, then click Save.

​
Limitations

  • Prophecy only supports transpiling files from Informatica PowerCenter Designer version 10.4.1 and later. In other words, Prophecy does not support transpiling files from Informatica Intelligent Data Management Cloud (IDMC).
  • Prophecy does not support transpiling your Informatica schedules. You must manually configure your schedule in your Prophecy project after transpiling your Informatica workflow.

​
Migration

​
Upload your Informatica bundle

  1. On the left navigation bar, click the Transpiler icon, the icon with an arrow pointing down in a circle.
  2. At the top of the page, click Import Bundle.
  3. Select the Informatica format and click Next.
  4. Enter the bundle details.
    FieldDescription
    Import Bundle NameName of your bundle.
    LanguageChange the language of your pipeline to Spark.
    TeamCreate or choose the team with access to the bundle.
    ProjectCreate or choose the project of the migration.
    Prophecy filters this list by projects that are written in the language you chose.
    BranchSelect the Git branch where you want to upload your code.
    Spark FabricChoose the Spark fabric to attach your datasets and schedules to.
  5. Click Next.
  6. Upload all the Informatica files you want to convert to Spark pipelines. Prophecy accepts the .xml file type, which contains structured information about your Informatica workflow.
  7. Click Next.

​
Import pipeline

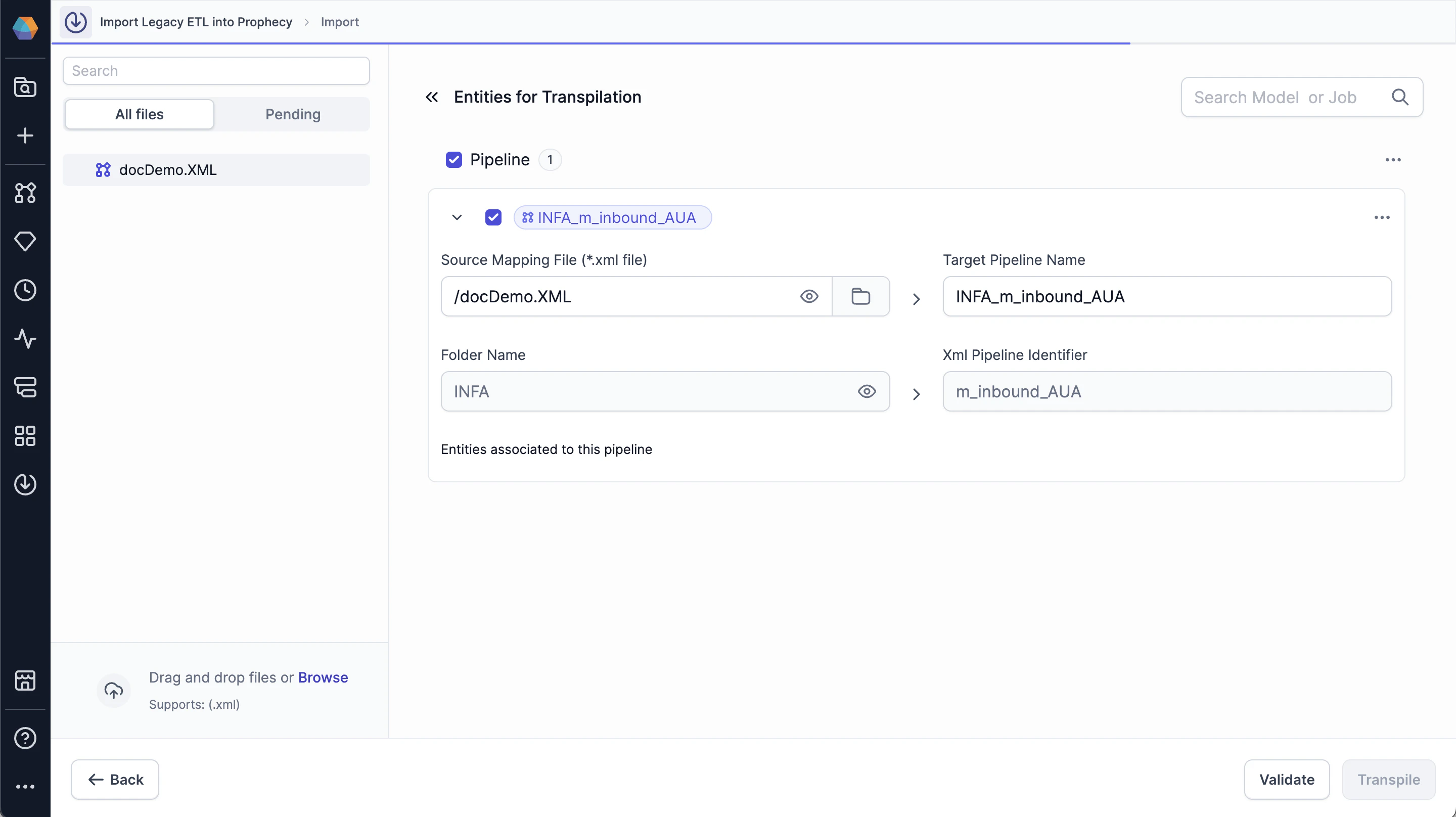

Next, to configure how Prophecy imports your pipelines: Reimport
  1. Click on each file to edit its configurations. In the left sidebar, Prophecy lists the files you uploaded in the previous section, which are automatically staged to import. If you upload additional Informatica files on this page, then you have to manually stage them to import. All unstaged files can be viewed in the Pending tab of the left sidebar. Once you add a pipeline, you can disable the import by deselecting the relevant checkbox. Disabling the import is useful if you want to save the pipeline in the import configuration to import it at a later time. However, you also can delete the pipeline from staging.
  2. Click Validate. You must validate your pipeline before you can start the transpilation. When you click the Validate button, Prophecy makes sure that the migration is possible with all the files you want to import.
  3. Click the Transpile.
    You can only click the Transpile button after Prophecy validates your files.

​
Import transpiled entities

To import your transpiled entities:

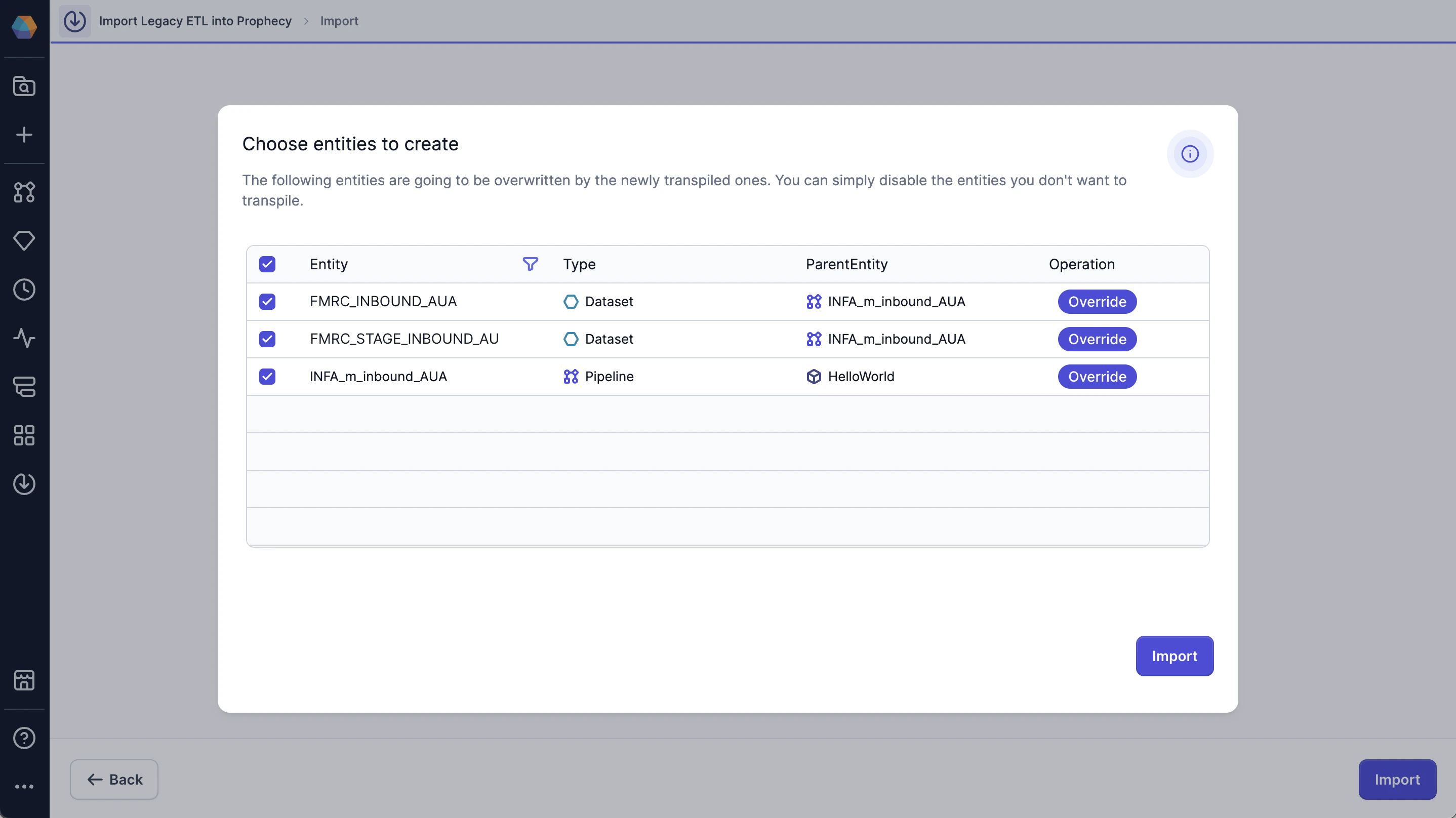

  1. Click Import. Now, you see a list of transpiled entities that you can create when you import them. You can either import all of the entities, or you can disable some before importing. Reimport
  2. Click Import again.
  3. Click View Bundle Details.

​
Review Prophecy project

If there isn’t an equivalent gem or function for a certain transformation, Prophecy inserts a placeholder todo gem or function in your pipeline where you can write your script or Spark statements to achieve the required functionality.

​
Review bundle metadata

After you successfully import a bundle, you see the Imported status on the Transpiler page. To see the bundle metadata, which includes information about all of the imported entities in the bundle, click on the bundle. Reimport You can review the pipelines, jobs, tables, function, coverage, status, source, language, project, and fabric of the bundle in the right tile. You can open any entity in a new tab in the project editor by clicking on the entity.

​
Testing

Open your bundle and run your pipeline to verify that it writes the same output as your Informatica workflow. If not, modify or add additional gems to make the output the same. Before you deploy your project into production, we recommend you run both your Informatica workflow and Prophecy pipeline in parallel for at least two weeks. This helps you see if Prophecy consistently produces the same output as Informatica.

​
Reimport pipelines

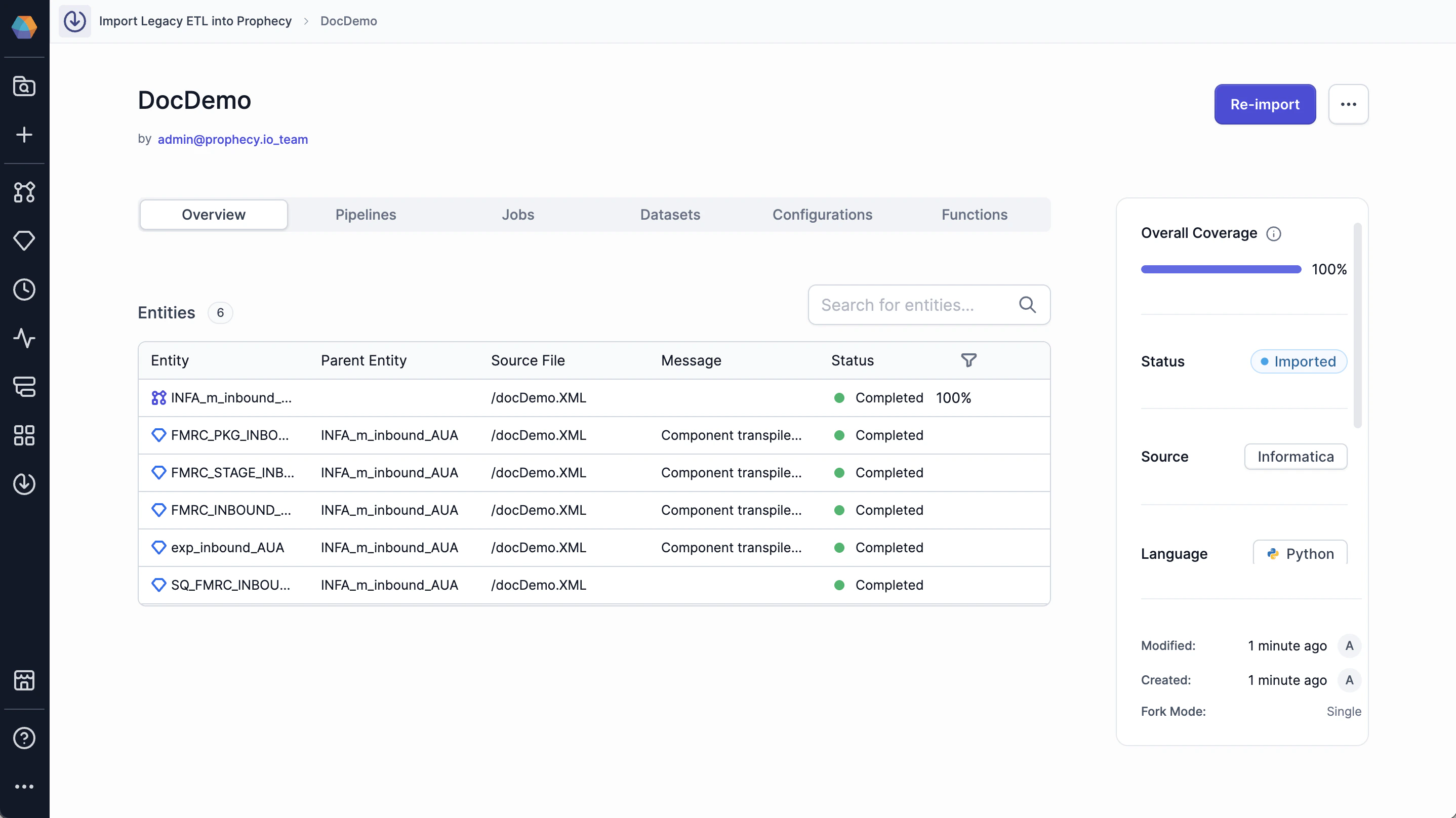

If you want to update or restart your transpilation, click the Reimport button at the top right corner of the bundle’s page. Reimport
