FlattenSchema gem for Data Analysis

This gem runs in .

Overview

Flattening a dataset schema helps you simplify complex, hierarchical data. Use the FlattenSchema gem to convert arrays or other nested data types into flat or lateral columns. This page describes how to use this gem according to your SQL warehouse provider.

The gem has a corresponding interactive gem example. See Interactive gem examples to learn how to run sample pipelines for this and other gems.

Variant data

When you import tables with variant data into Prophecy, you’ll see one or more nested columns in your dataset schema. These will appear as a variant data type, which is an array of values with more than one data type. Variant types can be flattened. This data type is specific to Databricks and Snowflake.

Parameters

Configure the following parameters for the FlattenSchema gem.

Parameter	Description	Required
Flatten	Select the columns that include the arrays you want to flatten.	True
Expressions	Define the output columns that you want to appear in the output table.	True

Example

Assume you have the following JSON file that includes data you would like to flatten. The data includes information about multiple businesses with nested contact information for each business.

Databricks
Snowflake
BigQuery

Databricks accepts JSON files with a top-level array of JSON objects.

[
  {
    "first_name": "Remmington",
    "last_name": "Smith",
    "age": "68",
    "business": [
      {
        "address": [
          {
            "manager": "Liara Andrew",
            "name": "RS Enterprises",
            "contact": [
              { "content": "rsmith@example.com", "type": "email" },
              { "content": "1234-345-56", "type": "phone" }
            ],
            "is_still_active": false
          }
        ]
      }
    ]
  },
  {
    "first_name": "Penny",
    "last_name": "John",
    "age": "57",
    "business": [
      {
        "address": [
          {
            "manager": "Bobby Frank",
            "name": "PJ Enterprises",
            "contact": [
              { "content": "pjohn@example.com", "type": "email" },
              { "content": "8203-512-49", "type": "phone" }
            ],
            "is_still_active": true
          }
        ]
      }
    ]
  }
]

Snowflake accepts JSON files with a top-level array of JSON objects.

[
  {
    "first_name": "Remmington",
    "last_name": "Smith",
    "age": "68",
    "business": [
      {
        "address": [
          {
            "manager": "Liara Andrew",
            "name": "RS Enterprises",
            "contact": [
              { "content": "rsmith@example.com", "type": "email" },
              { "content": "1234-345-56", "type": "phone" }
            ],
            "is_still_active": false
          }
        ]
      }
    ]
  },
  {
    "first_name": "Penny",
    "last_name": "John",
    "age": "57",
    "business": [
      {
        "address": [
          {
            "manager": "Bobby Frank",
            "name": "PJ Enterprises",
            "contact": [
              { "content": "pjohn@example.com", "type": "email" },
              { "content": "8203-512-49", "type": "phone" }
            ],
            "is_still_active": true
          }
        ]
      }
    ]
  }
]

BigQuery expects newline-delimited JSON format. This means it expects one JSON object per line, without a surrounding array.

{"first_name":"Remmington","last_name":"Smith","age":"68","business":[{"address":[{"manager":"Liara Andrew","name":"RS Enterprises","contact":[{"content":"rsmith@example.com","type":"email"},{"content":"1234-345-56","type":"phone"}],"is_still_active":false}]}]}
{"first_name":"Penny","last_name":"John","age":"57","business":[{"address":[{"manager":"Bobby Frank","name":"PJ Enterprises","contact":[{"content":"pjohn@example.com","type":"email"},{"content":"8203-512-49","type":"phone"}],"is_still_active":true}]}]}

Expressions

The FlattenSchema gem allows you to extract variant data into a flattened schema. For example, to flatten your variant data:

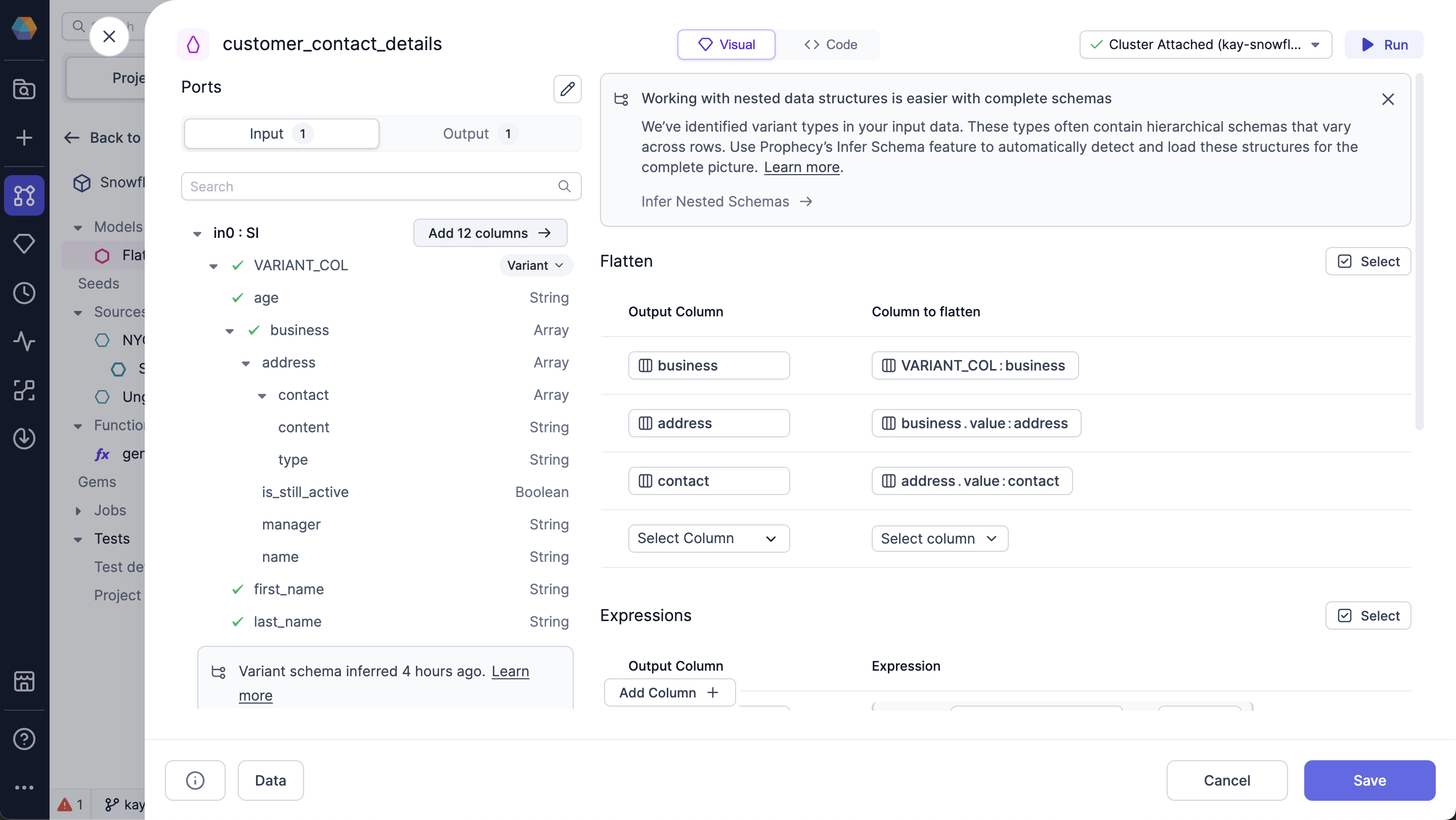

In the Input tab, hover over the in0 field and click the Add 12 Columns button. Now, all the nested lowest-level values of your object are visible as columns in the Expressions section.
(Optional) To change the name of the column in the output, change the value in the Output Column for the row.
Click Run.

Output

After you run the FlattenSchema gem, click the Data button to see your schema based on the selected columns:

The FlattenSchema gem flattened all your variant data, which gives you individual rows for each one.

Snowflake advanced settings

You can use advanced settings with your Snowflake source to customize the optional column arguments. To use the advanced settings:

Hover over the column you want to flatten.

Click the dropdown arrow. You can customize the following options:

Option	Description	Default
Path to the element	Path to the element within the variant data structure that you want to flatten.	None
Flatten all elements recursively	Whether to expand all sub-elements recursively.	`false`
Preserve rows with missing field	Whether to include rows with missing fields as `null` in the key, index, and value columns.	`false`
Datatype that needs to be flattened	Data type that you want to flatten. Possible values are: `Object`, `Array`, or `Both`.	`Both`
