Available for Enterprise Edition only.

​
Integrate with GitHub Actions

PBT can be integrated with your own CI/CD solution to build, test, and deploy Prophecy code. The steps for setting up PBT with GitHub Actions on your repository containing a Prophecy project are mentioned below.
View an Example GitHub repository.

​
Prerequisites

  • A Prophecy project that is currently hosted in a GitHub repository

​
Set up environment variables and secrets

PBT requires environment variables DATABRICKS_URL and DATABRICKS_TOKEN to be set for complete functionality. The DATABRICKS_TOKEN that needs to be used can be set as a secret inside the GitHub repository of the project. Steps:
  • Go to Settings > Secrets > Actions from the GitHub repository menu
  • Click ‘New Repository secret’
  • Add the secret with name DATABRICKS_TOKEN and value of the Databricks token to be used by PBT.

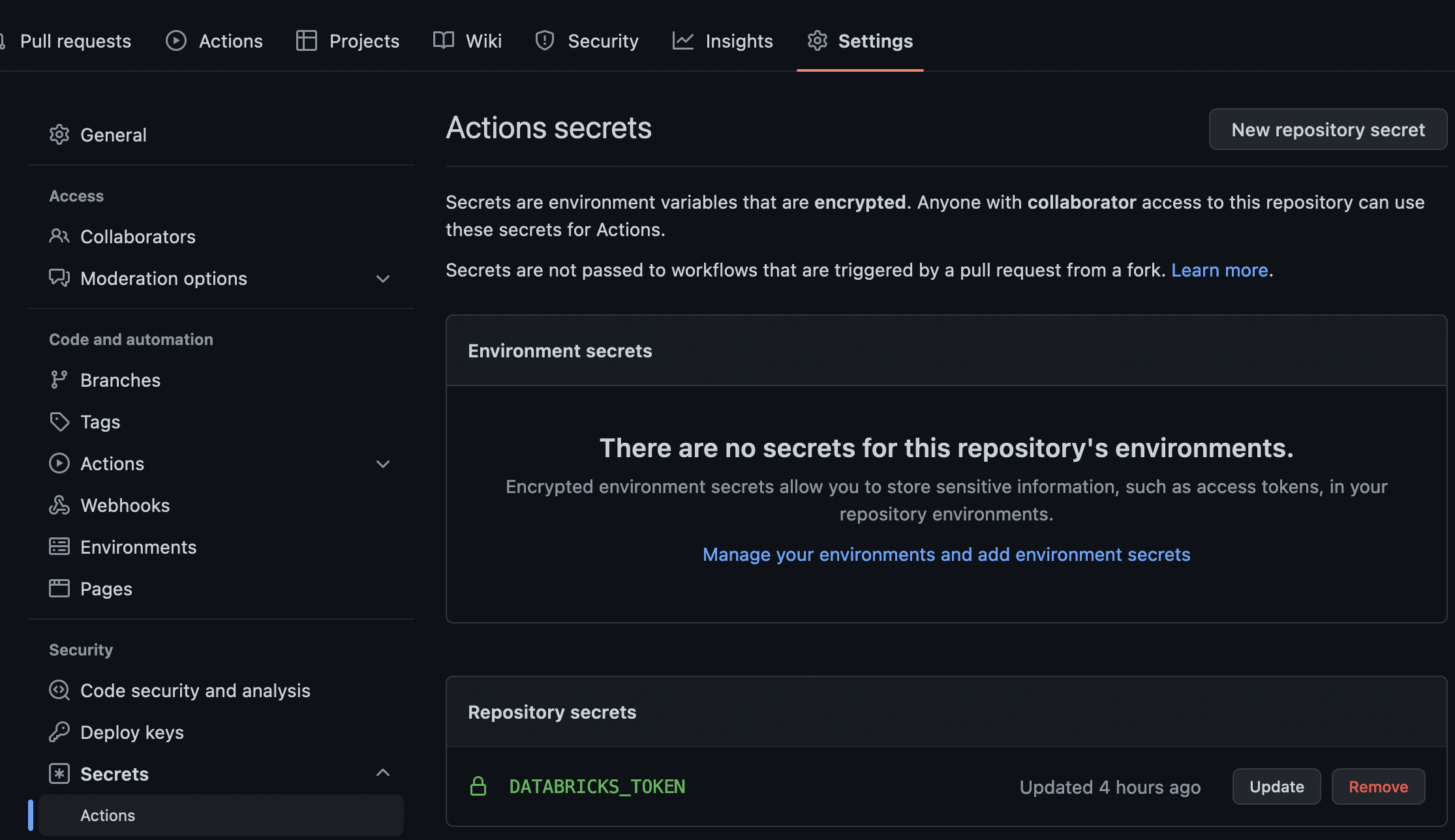

Screenshot after setting DATABRICKS_TOKEN secret: GitHub Actions Secret addition The environment variables can also be set within the GitHub actions YML file as follows:
env:
DATABRICKS_HOST: "https://sample_databricks_url.cloud.databricks.com"
DATABRICKS_TOKEN: ${{ secrets.DATABRICKS_TOKEN }}
The complete YML file definition is discussed in the next section.

​
Set up a GitHub Actions Workflow on every push to prod branch

We’re now ready to setup CI/CD on the Prophecy project. To setup a workflow to build, run all unit tests and then deploy the built jar (Scala)/ whl (Python) on Databricks on every push to the prod branch automatically:
  • Create a .YML file in the project repository at the below location (relative to root):
    .github/workflows/exampleWorkflow.yml
  • Add the below contents to exampleWorkflow.yml:
    name: Example CI/CD with GitHub actions
on:
push:
branches: - "prod"

env:
DATABRICKS_HOST: "https://sample_databricks_url.cloud.databricks.com"
DATABRICKS_TOKEN: ${{ secrets.PROD_DATABRICKS_TOKEN }}
# replace with your fabric id:
FABRIC_ID: "4004"

jobs:
build:
runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v3
      - name: Set up JDK 11
        uses: actions/setup-java@v3
        with:
          java-version: "11"
          distribution: "adopt"
      - name: Set up Python 3.9.13
        uses: actions/setup-python@v4
        with:
          python-version: "3.9.13"
      # Install all python dependencies
      # prophecy-libs not included here because prophecy-build-tool takes care of it by reading each pipeline's setup.py
      - name: Install dependencies
        run: |
          python3 -m pip install --upgrade pip
          pip3 install build pytest wheel pytest-html pyspark==3.3.0  prophecy-build-tool
      - name: Run PBT validate
        run: pbt validate --path .
      - name: Run PBT build
        run: pbt build --path .
      - name: Run PBT test
        run: pbt test --path .
      - name: Run PBT deploy
        run: pbt deploy --path . --release-version 1.0 --project-id example_project_id
The above workflow does the following in order:
  1. Triggers on every change that is pushed to the branch prod.
  2. Sets the environment variables required for PBT to run: DATABRICKS_HOST and DATABRICKS_TOKEN.
  3. Sets up JDK 11, Python 3 and other dependencies required for PBT to run.
  4. Validate that the pipeline code is free of syntax errors.
  5. Builds all the pipelines present in the project and generates a .jar/.whl file. If the build fails at any point a non-zero exit code is returned which stops the workflow from proceeding further and the workflow run is marked as a failure.
  6. Runs all the unit tests present in the project using FABRIC_NAME(optional) as the configuration. If any of the unit tests fail a non-zero exit code is returned which stops the workflow from proceeding further and the workflow run is marked as a failure.
  7. Deploys the built .jar/.whl to the Databricks location mentioned in databricks-job.json, located in the jobs directory of the project. If the job already exists in Databricks it is updated with the new .jar/.whl.
  8. Deploys pipeline configurations, if present, to the DBFS path mentioned in databricks-job.json.
  9. If this process fails at any step, a non-zero exit code is returned which stops the workflow from proceeding further and the workflow run is marked as a failure.
