Join gem for Data Engineering

Dependencies & cluster requirements

Dependencies:

ProphecySparkBasicsPython 0.0.1+
ProphecySparkBasicsScala 0.0.1+

Cluster requirements:

UC dedicated clusters 14.3+ supported
UC standard clusters 14.3+ supported
Livy clusters 3.0.1+ supported

Joins 2 or more DataFrames based on the given configuration.

Parameters

Parameter	Description	Required
DataFrame 1	First input DataFrame	True
DataFrame 2	Second input DataFrame	True
DataFrame N	Nth input DataFrame	False
Join Condition (Conditions tab)	The join condition specifies how the rows will be combined.	True
Type (Conditions tab)	The type of JOIN `(Inner, Full Outer, Left , Right , Left Semi, Left Anti)`	True
Where Clause (Conditions tab)	`Filter` applied after the Join operation	False
Target column (Expressions)	Output column name	False
Expression (Expressions)	Expression to compute target column. If no expression is given, then all columns from all DataFrames would reflect in output.	False
Hint Type (Advanced)	The type of Join Hint (`Broadcast`, `Merge`, `Shuffle Hash`, `Shuffle Replicate NL` or `None`). To read more about join hints click here	False
Propagate All Columns (Advanced)	If `true`, all columns from that DataFrame would be propagated to output DataFrame. Equivalent to selecting `df.*` for the selected DataFrame.	False

Adding a new input

Click on the + icon to add a new input.
Then add your condition expression for the newly added input.

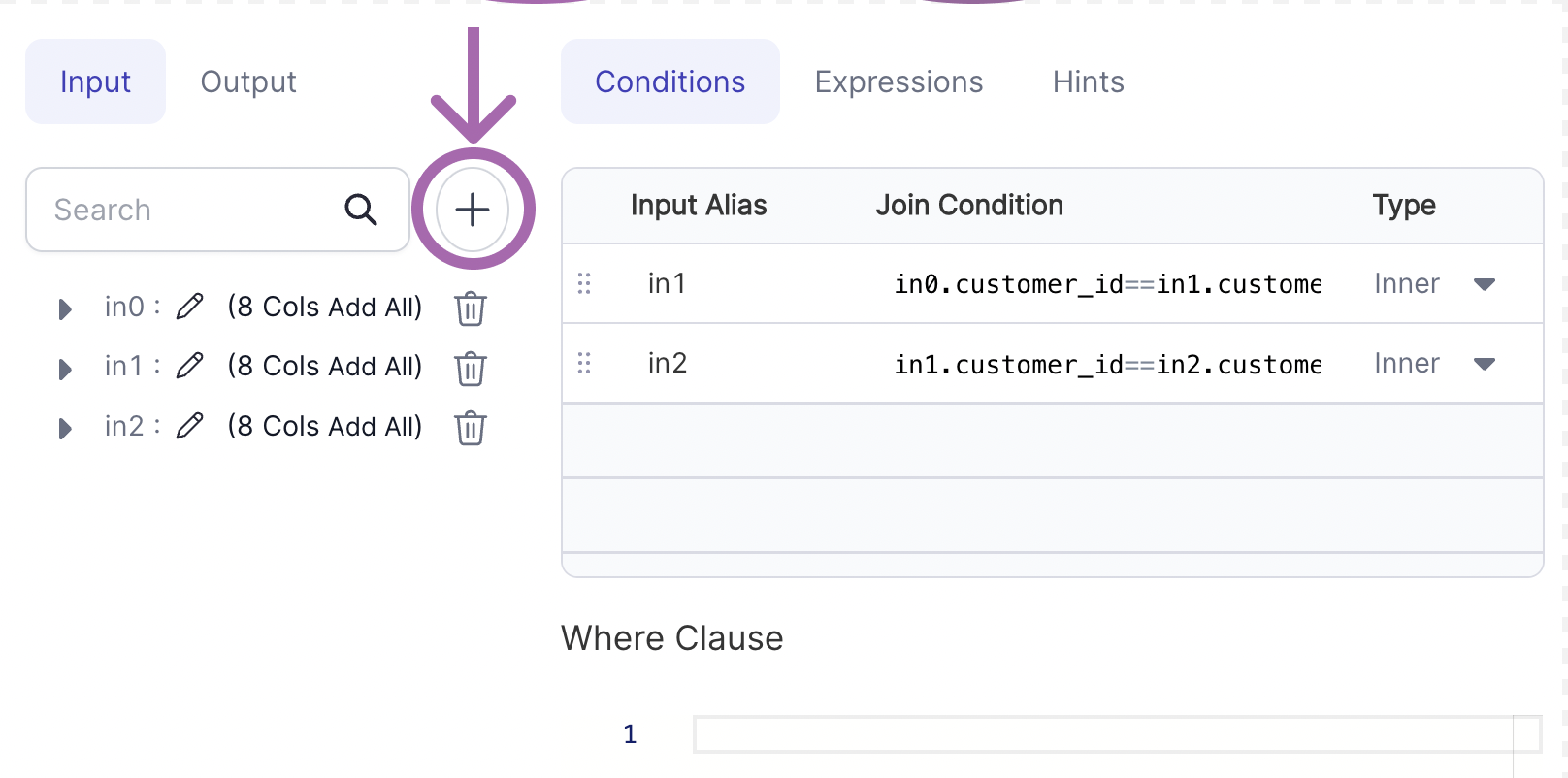

Example usage of Join - Add new input to join gem

Examples

Example 1 - Join with three DataFrame inputs

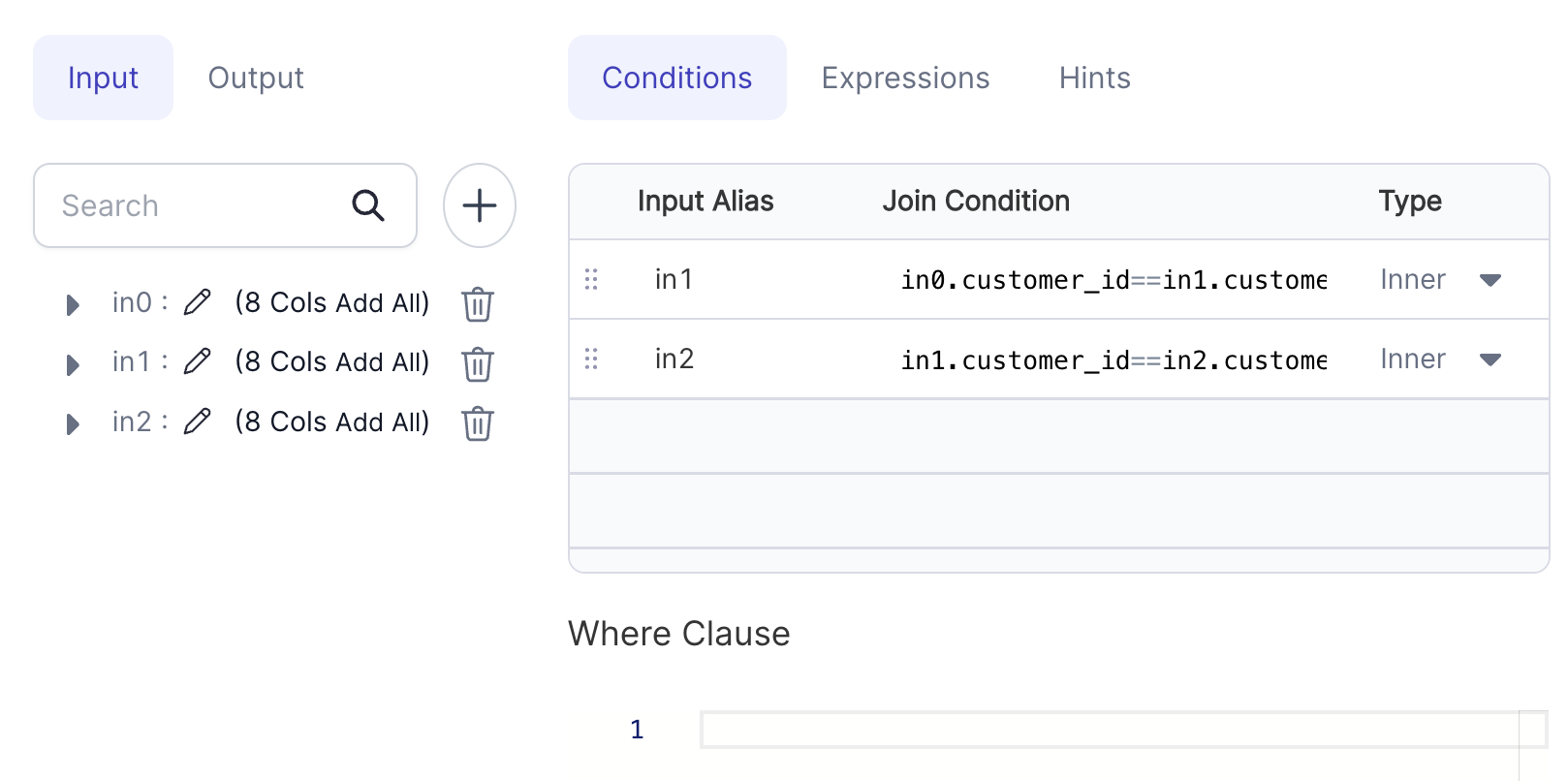

Example usage of Join - Join three DataFrame inputs

def Join_1(spark: SparkSession, in0: DataFrame) -> DataFrame:
 return in0\
 .alias("in0")\
 .join(in1.alias("in1"), (col("in0.customer_id") == col("in1.customer_id")), "inner")\
 .join(in2.alias("in2"), (col("in1.customer_id") == col("in2.customer_id")), "inner")

object Join_1 {
 def apply(spark: SparkSession, in0: DataFrame, in1: DataFrame, in2: DataFrame): DataFrame =
 in0
 .as("in0")
 .join(in1.as("in1"), col("in0.customer_id") === col("in1.customer_id"), "inner")
 .join(in2.as("in2"), col("in1.customer_id") === col("in2.customer_id"), "inner")
}

Example 2 - Join with Hints

Join hints allow users to suggest the join strategy that Spark should use. For a quick overview, see Spark’s Join Hints documentation.

def Join_1(spark: SparkSession, in0: DataFrame, in1: DataFrame, in2: DataFrame) -> DataFrame:
 df1 = in1.hint("merge")

 return in0\
 .alias("in0")\
 .hint("broadcast")\
 .join(df1.alias("in1"), col("in0.customer_id") == col("in1.customer_id"), "inner")\
 .join(in2.alias("in2"), col("in0.customer_id") == col("in1.customer_id"), "inner")

object Join_1 {
 def apply(spark: SparkSession, in0: DataFrame, in1: DataFrame, in2: DataFrame): DataFrame =
 in0
 .as("in0")
 .hint("broadcast")
 .join(in1.as("in1").hint("merge"), col("in0.customer_id") === col("in1.customer_id"), "inner")
 .join(in2.as("in2"), col("in1.customer_id") === col("in2.customer_id"), "inner")
}

Example 3 - Join with Propagate Columns

import App from '@site/src/components/slider';

export const ImageData = [
 {
 "image":"/img/join/join-eg3-conditions.png",
 "description":<h3 style="padding:10px">Step 1 - Specify join condition</h3>,
 },
 {
 "image":"/img/join/join-eg3-expressions.png",
 "description":<h3 style="padding:10px">Step 2 - Choose required columns from dataframe</h3>,
 },
 {
 "image":"/img/join/join-eg3-advanced.png",
 "description":<h3 style="padding:10px">Step 3 - Select Propagate all columns from in0</h3>,
 },
 {
 "image":"/img/join/join-eg3-output.png",
 "description":<h3 style="padding:10px">Output - Output with all columns from in0 and selected columns from in1</h3>
 },
];

<App ImageData={ImageData}></App>

def Join_1(spark: SparkSession, in0: DataFrame, in1: DataFrame, ) -> DataFrame:
 return in0\
 .alias("in0")\
 .join(in1.alias("in1"), (col("in0.customer_id") == col("in1.customer_id")), "inner")\
 .select(*[col("in1.email").alias("email"), col("in1.phone").alias("phone")], col("in0.*"))

object Join_1 {

 def apply(spark: SparkSession, in0: DataFrame, in1: DataFrame): DataFrame =
 in0
 .as("in0")
 .join(in1.as("in1"), col("in0.customer_id") === col("in1.customer_id"), "inner")
 .select(col("in1.phone").as("phone"), col("in1.email").as("email"), col("in0.*"))

}

Types of Join

Suppose there are 2 tables TableA and TableB with only 2 columns (Ref, Data) and following contents:

Table A

Ref	Data
1	Data_A11
1	Data_A12
1	Data_A13
2	Data_A21
3	Data_A31

Table B

Ref	Data
1	Data_B11
2	Data_B21
2	Data_B22
2	Data_B23
4	Data_B41

INNER JOIN

Inner Join on column Ref will return columns from both the tables and only the matching records as long as the condition is satisfied:

Ref	Data	Ref	Data
1	Data_A11	1	Data_B11
1	Data_A12	1	Data_B11
1	Data_A13	1	Data_B11
2	Data_A21	2	Data_B21
2	Data_A21	2	Data_B22
2	Data_A21	2	Data_B23

LEFT JOIN

Left Join (or Left Outer join) on column Ref will return columns from both the tables and match records with records from the left table. The result-set will contain null for the rows for which there is no matching row on the right side.

Ref	Data	Ref	Data
1	Data_A11	1	Data_B11
1	Data_A12	1	Data_B11
1	Data_A13	1	Data_B11
2	Data_A21	2	Data_B21
2	Data_A21	2	Data_B22
2	Data_A21	2	Data_B23
3	Data_A31	NULL	NULL

RIGHT JOIN

Right Join (or Right Outer join) on column Ref will return columns from both the tables and match records with records from the right table. The result-set will contain null for the rows for which there is no matching row on the left side.

Ref	Data	Ref	Data
1	Data_A11	1	Data_B11
1	Data_A12	1	Data_B11
1	Data_A13	1	Data_B11
2	Data_A21	2	Data_B21
2	Data_A21	2	Data_B22
2	Data_A21	2	Data_B23
NULL	NULL	4	Data_B41

FULL OUTER JOIN

Full Outer Join on column Ref will return columns from both the tables and matching records with records from the left table and records from the right table . The result-set will contain NULL values for the rows for which there is no matching.

Ref	Data	Ref	Data
1	Data_A11	1	Data_B11
1	Data_A12	1	Data_B11
1	Data_A13	1	Data_B11
2	Data_A21	2	Data_B21
2	Data_A21	2	Data_B22
2	Data_A21	2	Data_B23
3	Data_A31	NULL	NULL
NULL	NULL	4	Data_B41

LEFT SEMI JOIN

Left Semi Join on column Ref will return columns only from left table and matching records only from left table.

Ref	Data
1	Data_B11
1	Data_B21
1	Data_B22
2	Data_B23
3	Data_B41

LEFT ANTI JOIN

Left anti join on column Ref will return columns from the left for non-matched records :

Ref	Data	Ref	Data
3	Data_A31	NULL	NULL
