WindowFunction gem for Data Engineering

Dependencies & cluster requirements

Dependencies:

ProphecySparkBasicsPython 0.0.1+
ProphecySparkBasicsScala 0.0.1+

Cluster requirements:

UC dedicated clusters 14.3+ supported
UC standard clusters 14.3+ supported
Livy clusters 3.0.1+ supported

The WindowFunction gem lets you apply window functions on a DataFrame.

Parameters

Explore the following sections to understand how to configure the WindowFunction gem.

Partition By

Parameter	Description	Required
Partition column	Column to partition the data by in the Window function	False

OrderBy

Parameter	Description	Required
Order columns	Columns to order the data by in the window.	False
Sort	Sort in ascending or descending order.	Required if order column is defined

Order columns are required when the source expression in the WindowUse tab uses ranking or analytical functions. Numeric columns are required when range frame is the selected window frame type.

Frame

Parameter	Description	Required
Row frame	Row-based frame boundary to apply on the Window	False
Range frame	Range-based frame boundary to apply on the Window	False

Row Frame

The Row Frame option defines the window size based on the number of rows before and after the current row. You configure the frame by setting a Start and an End boundary. The boundaries can be:

Unbounded Preceding: Includes all rows before the current row.
Unbounded Following: Includes all rows after the current row.
Current Row: Starts or ends at the current row.
Row Number: A specific number of rows before or after the current row.

Range Frame

The Range Frame defines the window using values in the Order By column. You configure the frame by setting a Start and an End boundary. The boundaries can be:

Unbounded Preceding: Includes all rows before the current row.
Unbounded Following: Includes all rows after the current row.
Current Row: Starts or ends at the current row.
Range Value: A numeric or interval value defining how far before or after the current row to look.

Because the Range Frame depends on actual data values (not row positions), the number of rows in the window may vary for each record. For example, some window frames may include only one match within 5 days, while others may include ten.

WindowUse

Parameter	Description	Required
Target Column	Name of the column that will contain the values returned from the source expression(s).	True
Source expression	Window function expression to apply over the window frame.	True

Examples

Ranking Functions with Window

Examples of ranking functions are: row_number(), rank(), dense_rank() and ntile().

Tab	Parameter	Value
PartitionBy	PartitionColumn	`customer_id`
OrderBy	Order Columns	`order_date` in ascending order
WindowUse	Source Expressions	`row_number()` and `ntile(2)`

Only the default window frame (rowFrame, unboundedPreceding, currentRow) can be used with ranking functions.

def rank_cust_orders(spark: SparkSession, in0: DataFrame) -> DataFrame:
 return in0\
 .withColumn(
 "order_number",
 row_number().over(
 Window.partitionBy(col("customer_id")).orderBy(col("order_date").asc())
 )
 )\
 .withColumn(
 "order_recency",
 ntile(2).over(
 Window.partitionBy(col("customer_id")).orderBy(col("order_date").asc())
 )
 )

object rank_cust_orders {

 def apply(spark: SparkSession, in1: DataFrame): DataFrame = {
 import org.apache.spark.sql.expressions.{Window, WindowSpec}
 in1
 .withColumn(
 "order_number",
 row_number().over(
 Window.partitionBy(col("customer_id")).orderBy(col("order_date").asc)
 )
 )
 .withColumn(
 "order_recency",
 ntile(2).over(
 Window.partitionBy(col("customer_id")).orderBy(col("order_date").asc)
 )
 )
 }
}

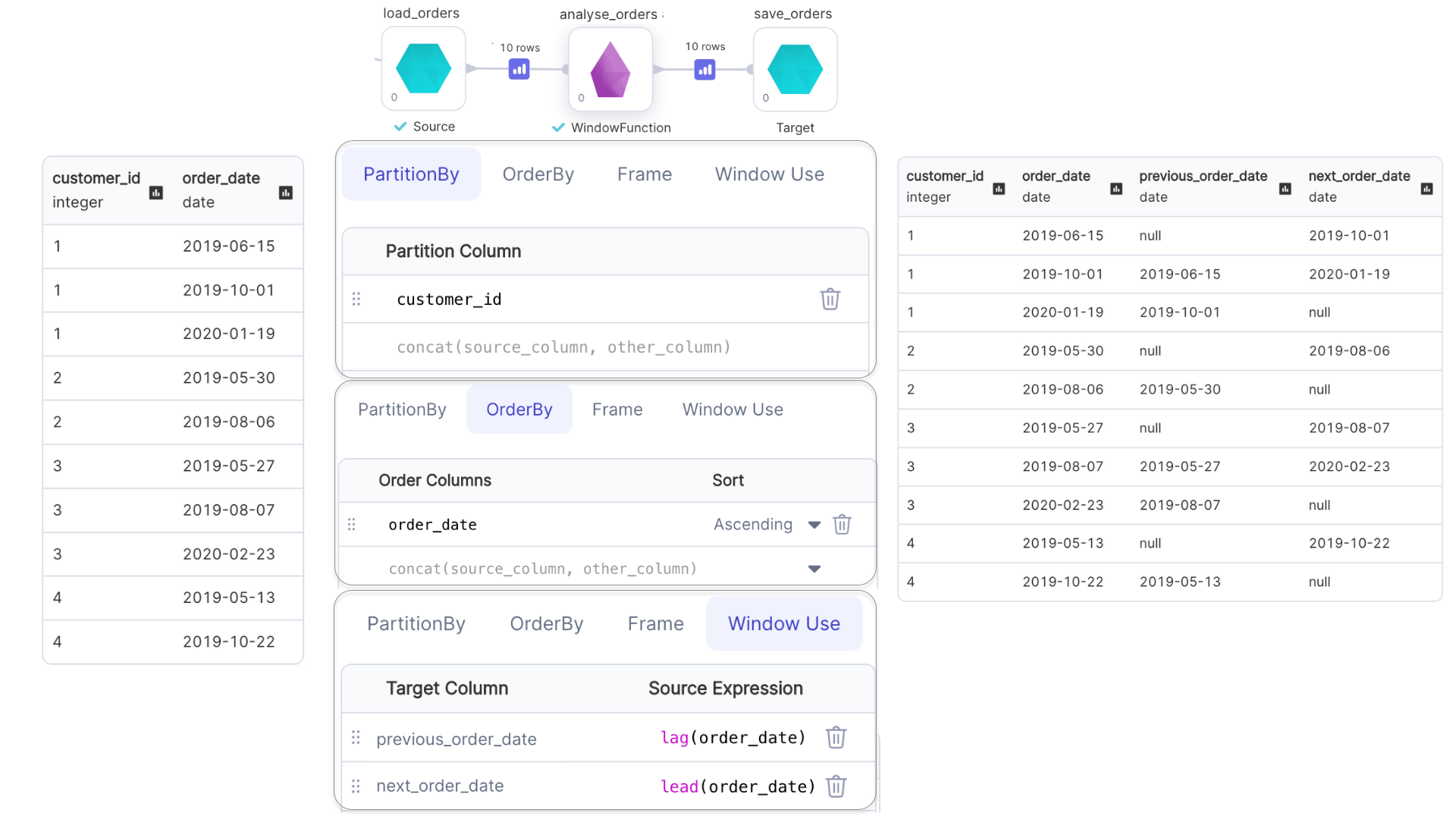

Analytical Functions with Window

Examples of analytical functions are: lead(), lag(), cume_dist(), etc.

Window frame for lead() and lag() can not be specified.
Only the default window frame (rangeFrame, unboundedPreceding, currentRow) can be used with cume_dist().

def analyse_orders(spark: SparkSession, in0: DataFrame) -> DataFrame:
 return in0\
 .withColumn(
 "previous_order_date",
 lag(col("order_date")).over(
 Window.partitionBy(col("customer_id")).orderBy(col("order_id").asc())
 )
 )\
 .withColumn(
 "next_order_date",
 lead(col("order_date")).over(
 Window.partitionBy(col("customer_id")).orderBy(col("order_id").asc())
 )
 )

object analyse_orders {
 def apply(spark: SparkSession, in1: DataFrame): DataFrame = {
 import org.apache.spark.sql.expressions.{Window, WindowSpec}
 in1
 .withColumn(
 "previous_order_date",
 lag(col("order_date")).over(
 Window.partitionBy(col("customer_id")).orderBy(col("order_date").asc)
 )
 )
 .withColumn(
 "next_order_date",
 lead(col("order_date")).over(
 Window.partitionBy(col("customer_id")).orderBy(col("order_date").asc)
 )
 )
 }
}

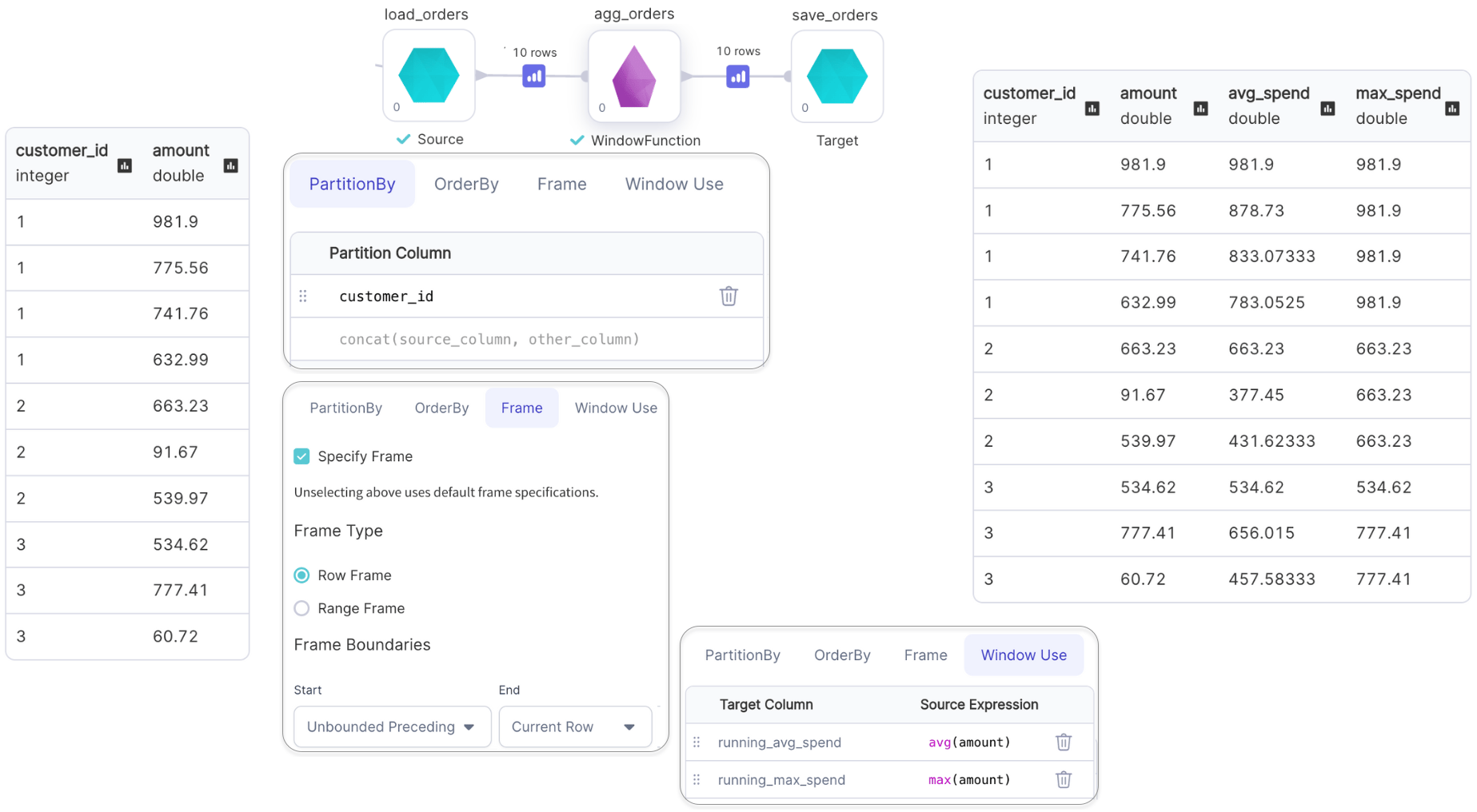

Aggregate Functions with Window

Examples of aggregate functions are: min(), max(), avg(), etc.

def agg_orders(spark: SparkSession, in0: DataFrame) -> DataFrame:
 return in0\
 .withColumn(
 "running_avg_spend",
 avg(col("amount"))\
 .over(Window.partitionBy(col("customer_id"))\
 .rowsBetween(Window.unboundedPreceding, Window.currentRow))
 )\
 .withColumn("running_max_spend", max(col("amount"))\
 .over(Window.partitionBy(col("customer_id"))\
 .rowsBetween(Window.unboundedPreceding, Window.currentRow)))

object agg_orders {
 def apply(spark: SparkSession, in1: DataFrame): DataFrame = {
 import org.apache.spark.sql.expressions.{Window, WindowSpec}
 in1
 .withColumn("running_avg_spend",
 avg(col("amount")).over(
 Window
 .partitionBy(col("customer_id"))
 .rowsBetween(Window.unboundedPreceding, Window.currentRow)
 )
 )
 .withColumn("running_max_spend",
 max(col("amount")).over(
 Window
 .partitionBy(col("customer_id"))
 .rowsBetween(Window.unboundedPreceding, Window.currentRow)
 )
 )
 }
}
