Available for Enterprise Edition only.
In the context of Spark execution engines, users have the flexibility to opt for Google Cloud Dataproc. This guide offers step-by-step instructions on creating a fabric that enables seamless connectivity to the Dataproc environment.

​
Requirements

Livy must be installed on your cluster. Prophecy provides a script required to deploy a Dataproc cluster.

​
Create a Dataproc Cluster

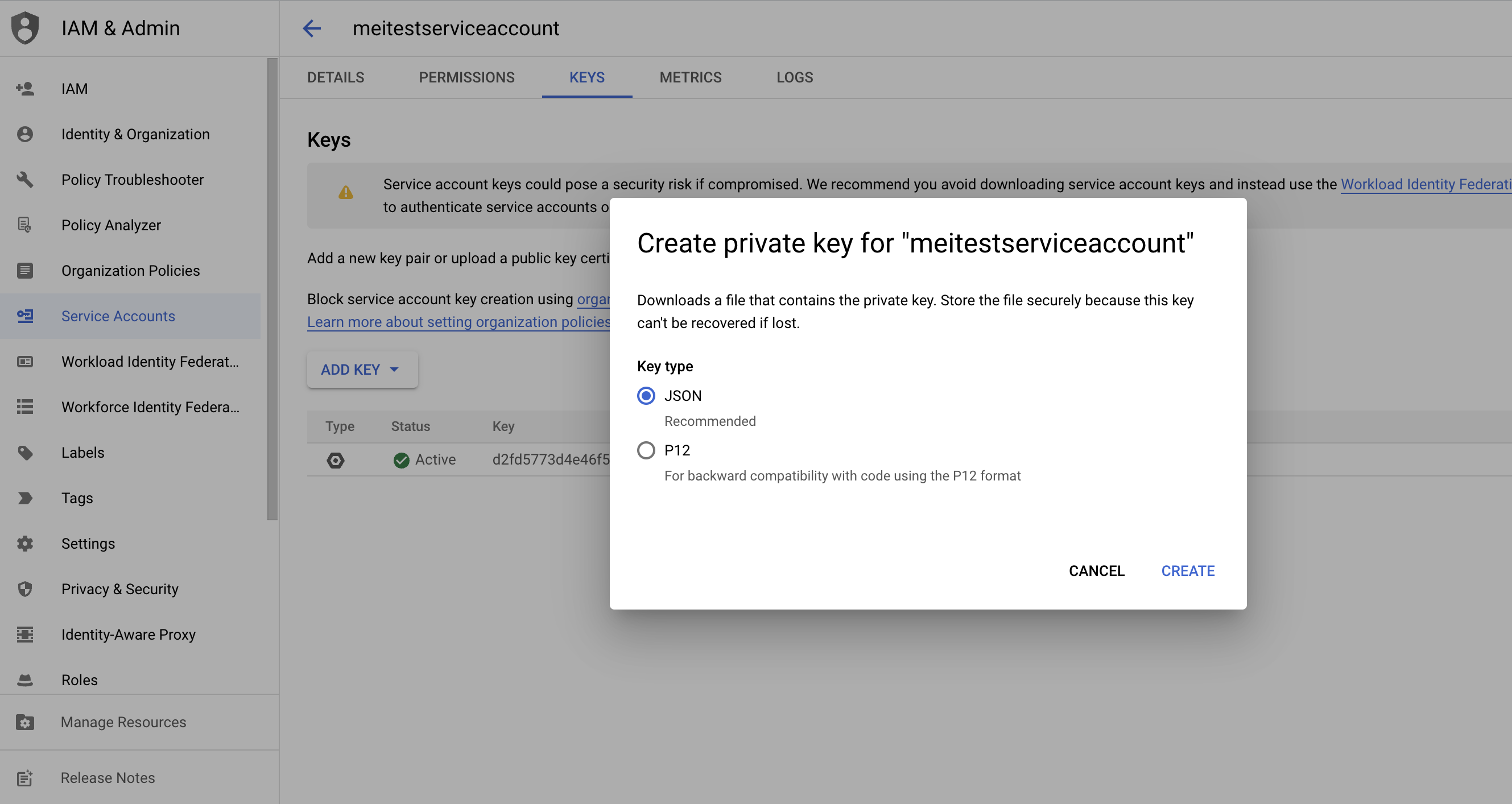

  1. If you don’t already have a private key, create a private key for the service account that you’re using. Dataproc security
  2. Ensure you have the following permissions configured.
    gcloud projects add-iam-policy-binding <project-name> \
--member "<service-account-name>" \
--role "roles/serviceusage.serviceUsageViewer"

gcloud projects add-iam-policy-binding <project-name> \
--member "<service-account-name>" \
--role "roles/dataproc.worker"

gcloud projects add-iam-policy-binding core-shard-398601 \
--member "<service-account-name>" \
--role "storage.objects.get"

gcloud storage buckets add-iam-policy-binding gs://<bucket-name> \
--member="<service-account-name>" --role=roles/storage.admin --project <project-name>
  3. Associate secret key to service account.
    gcloud config set account meitestserviceaccount@core-shard-398601.iam.gserviceaccount.com \
--key-file=<local-private-key-location>
  4. Start a Dataproc cluster using install-livy.sh.
     gcloud dataproc clusters create <cluster-name> \
--scopes <permission-scope> \
--region <cluster-region> \
--initialization-actions 'gs://prophecy-public-gcp/livy-installer-script/install-livy.sh' \
--properties "hive:hive.metastore.warehouse.dir=<gs://bucket/datasets>" \
--metadata "enable-cloud-sql-proxy-on-workers=false" \
--bucket <cluster-data-bucket-name> \
--region <region> \
--zone <zone> \
--single-node \
--master-machine-type n2-standard-4 \
--master-boot-disk-size 500 \
--image-version 2.0-debian10 \
--project <project-name> \
--service-account="<service-account-name>" \
--dataproc-metastore=projects/<project-name>/locations/<region>/services/<metastore-service-name>

​
Create a Dataproc fabric

  1. Create a fabric and select Dataproc. select dataproc

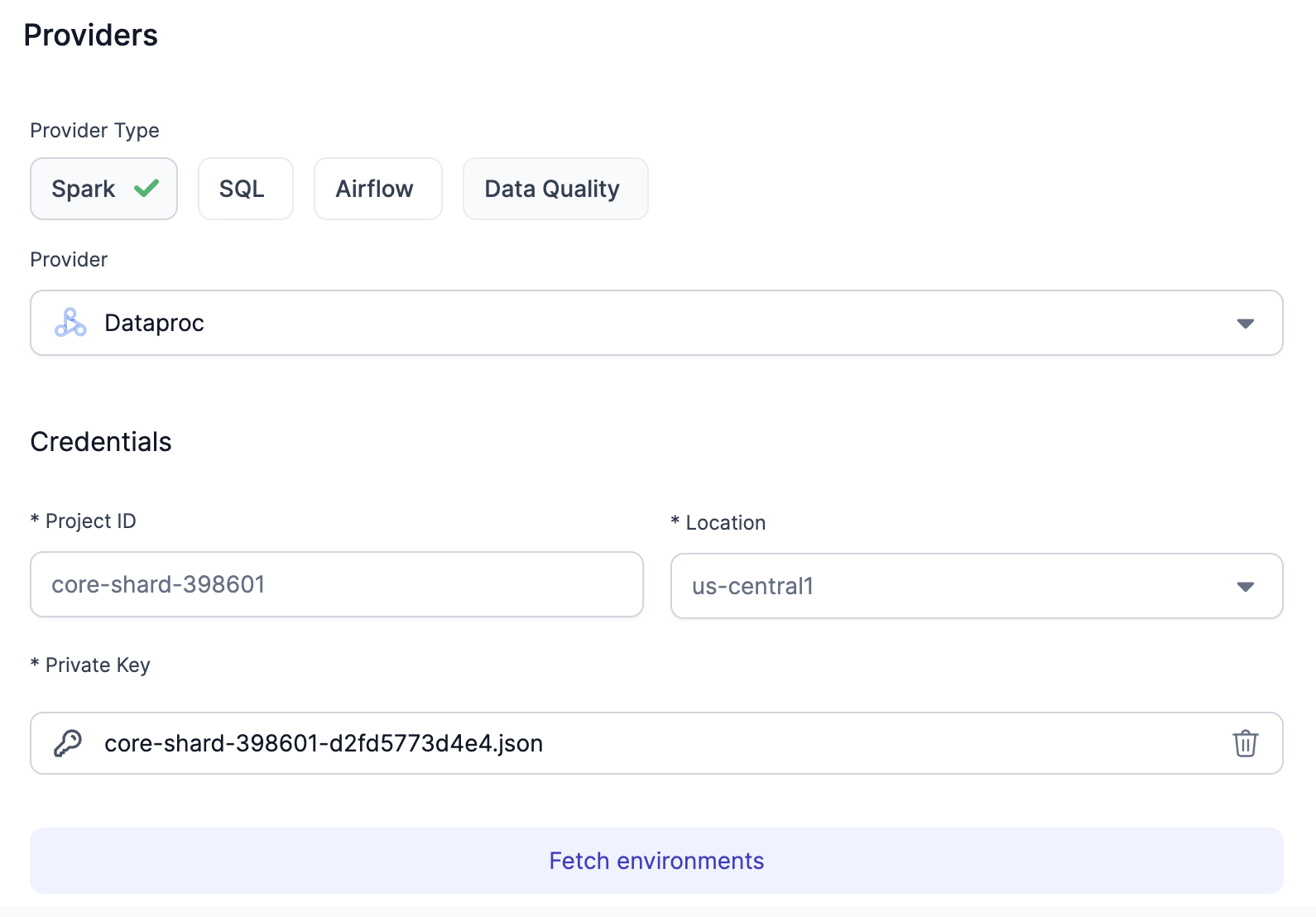

  2. Fill out your Project Name and Region, and upload the Private Key. configure dataproc
  3. Click on Fetch environments and select the Dataproc cluster that you created earlier. select cluster

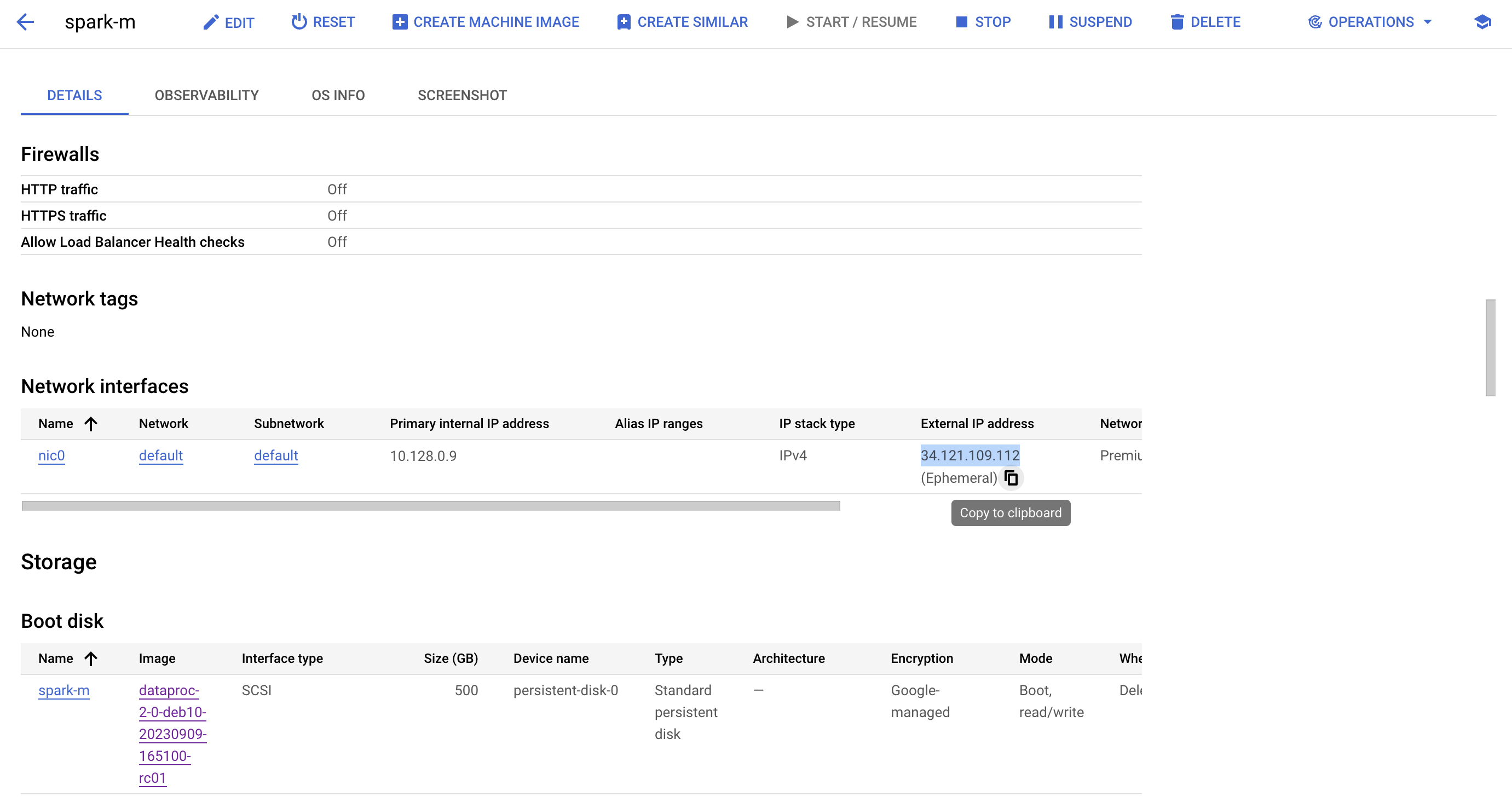

  4. Leave everything as default and provide the Livy URL. Locate the External IP of your cluster instance. Optionally, you may configure the DNS instead of using the IP. The URL is http://<external-ip>:8998. livy ip

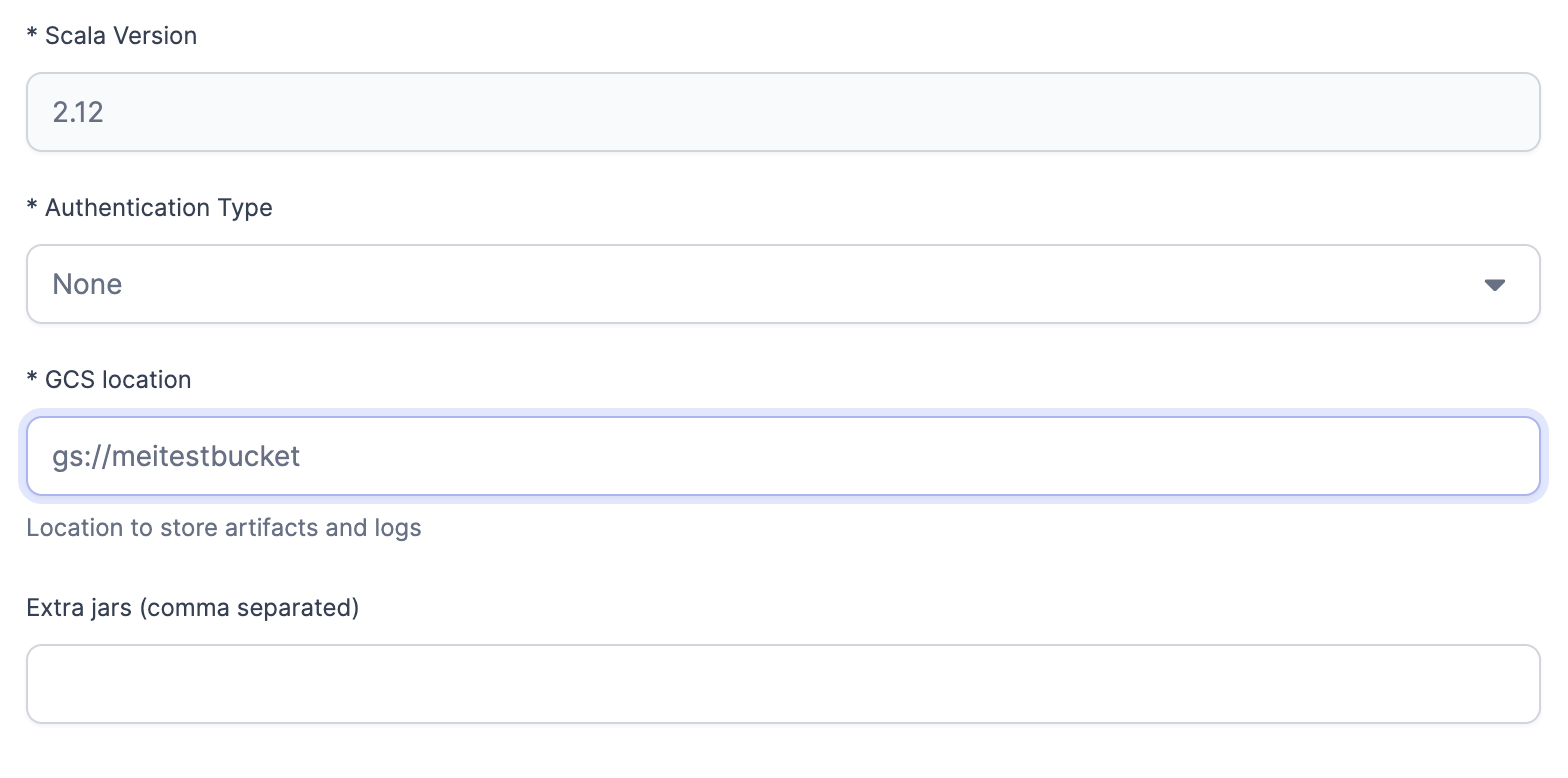

  5. Configure the bucket associated with your cluster. bucket location
  6. Add the Job Size. Job Size

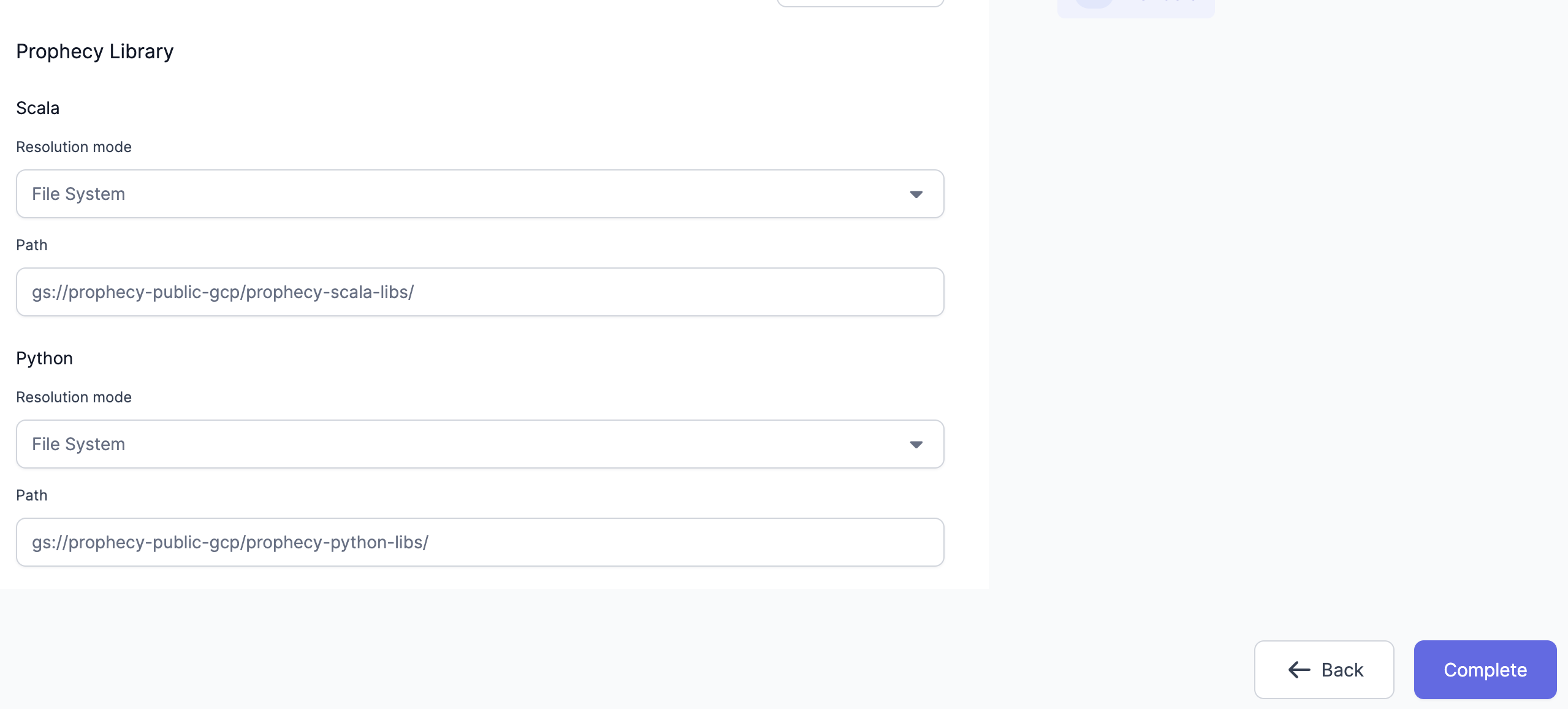

  7. Configure Scala Library Path. gs://prophecy-public-gcp/prophecy-scala-libs/.
  8. Configure Python Library Path. gs://prophecy-public-gcp/prophecy-python-libs/. dependencies
  9. Click on Complete.

​
Troubleshooting

​
Livy Cluster Cannot Access Scala or Python Libraries

It is possible to encounter the following error message when using a Dataproc fabric.
Creating new Livy Session...
Using prophecy libs path...repo1.maven.org...
Using python libraries...files.pythonhosted.org...
...
org.apache.spark.deploy.SparkSubmit.main(SparkSubmit.scala)\n\nYARN Diagnostics: ","level":"error"
Here are some ways to resolve the issue and allow successful Livy session creation.
  • Adjust Network Settings: Ensure the Livy Cluster allows outbound traffic to:
    • Scala Library URL: repo1.maven.org
    • Python Library URL: files.pythonhosted.org
  • Configure Library Paths: Manually set the library paths:
    • Scala Library Path: gs://prophecy-public-gcp/prophecy-scala-libs/
    • Python Library Path: gs://prophecy-public-gcp/prophecy-python-libs/
  • Use an Internal GCS Bucket: Host the required libraries internally by creating two folders in a GCS bucket and placing prophecy-scala-libs and prophecy-python-libs inside.
