Gem Builder reference for Spark

This page provides information about how gems are written in code. Reference this page when you are building or editing custom gems.

Requirements

Some options require a specific gemLibsVersion. To update this, you must manually change the gemLibsVersion value inside pbt_project.yml in your project Git repository.

Mode

There are a few different types of gems that you can create. The table below describes each mode you can choose.

Mode	Description	Additional settings
Transformation	Edits intermediate data in the pipeline that is in-memory.	Choose the category of the transformation gem
Dataset Format	Reads and writes data between storage and memory.	Choose whether the type is batch or streaming
Custom Subgraph (Python only)	Controls the flow of gems. Visit the Subgraph page for an example.	None

Classes

The following classes must be included in all Spark gems. Each class extends a base class that Prophecy has defined.

A class where you inherit the representation of the overall gem.
A class that contains the properties to be made available to the user for this particular gem.
A class that defines the Spark code that needs to run on your Spark cluster.

Class	Base Class for Transformation	Base Class for Dataset Format	Base Class for Custom Subgraph
class CustomGem(BaseClass)	`ComponentSpec`	`DatasetSpec`	`MetaComponentSpec`
class YourProperties(BaseClass)	`ComponentProperties`	`ComponentProperties`	`MetaComponentProperties`
class YourCode(BaseClass)	`ComponentCode`	`ComponentCode`	`MetaComponentCode`

Functions

The following functions can be used to customize Spark gems.

Function	Purpose	Return	Gem Mode
`optimizeCode`	Enables the Prophecy optimizer to simplify the gem code when it runs.	Boolean	All
`customOutputSchemaEnabled`	Enables the custom schema option by default in the gem. Requires gemLibsVersion 1.1.47+ for Scala.	Boolean	Transformation
`dialog`	Defines how you want the gem to look like in the visual interface.	`Dialog` object	Transformation and Subgraph
`sourceDialog`	Defines how you want the source gem to look like in the visual interface.	`DatasetDialog` object	Dataset and Subgraph
`targetDialog`	Defines how you want the target gem to look like in the visual interface.	`DatasetDialog` object	Dataset and Subgraph
`validate`	Defines how to detect user errors when using the gem.	`Diagnostics` array	All
`onChange`	Define UI state transformations.	`Properties` object	All
`serializeProperty`	(Scala only) Takes a Properties object and converts it into JSON format.	String	All
`deserializeProperty`	(Scala only) Parses a JSON string and converts it into a Properties object.	`Properties` object	All
`apply`	Included in the class that extends component code to define Spark logic.	None, DataFrame, or list of DataFrames	Transformation and Subgraph
`sourceApply`	Included in the class that extends component code to define Spark logic.	DataFrame	Dataset
`targetApply`	Included in the class that extends component code to define Spark logic.	None	Dataset

Examples

Parent Class

Python
Scala

class Filter(ComponentSpec):
name: str = "Filter"
    category: str = "Transform"
    def optimizeCode(self) -> bool:
        return True

object Filter extends ComponentSpec {
val name: String = "Filter"
val category: String = "Transform"
override def optimizeCode: Boolean = true

Properties Classes

Python
Scala

@dataclass(frozen=True)
    class FilterProperties(ComponentProperties):
        columnsSelector: List[str] = field(default_factory=list)
        condition: SColumn = SColumn("lit(True)")

    case class FilterProperties(
    @Property("Columns selector")
    columnsSelector: List[String] = Nil,
    @Property("Filter", "Predicate expression to filter rows of incoming dataframe")
    condition: SColumn = SColumn("lit(true)")
  ) extends ComponentProperties

Dialog (UI)

Python
Scala

def dialog(self) -> Dialog:
        return Dialog("Filter").addElement(
            ColumnsLayout(height="100%")
                .addColumn(PortSchemaTabs(selectedFieldsProperty=("columnsSelector")).importSchema(), "2fr")
                .addColumn(StackLayout(height=("100%"))
                .addElement(TitleElement("Filter Condition"))
                .addElement(
                Editor(height=("100%")).withSchemaSuggestions().bindProperty("condition.expression")
            ), "5fr"))

def dialog: Dialog = Dialog("Filter")
    .addElement(
      ColumnsLayout(height = Some("100%"))
        .addColumn(
          PortSchemaTabs(selectedFieldsProperty = Some("columnsSelector")).importSchema(),
          "2fr"
        )
        .addColumn(
          StackLayout(height = Some("100%"))
            .addElement(TitleElement("Filter Condition"))
            .addElement(
              Editor(height = Some("100%"))
                .withSchemaSuggestions()
                .bindProperty("condition.expression")
            ),
          "5fr"
        )
    )

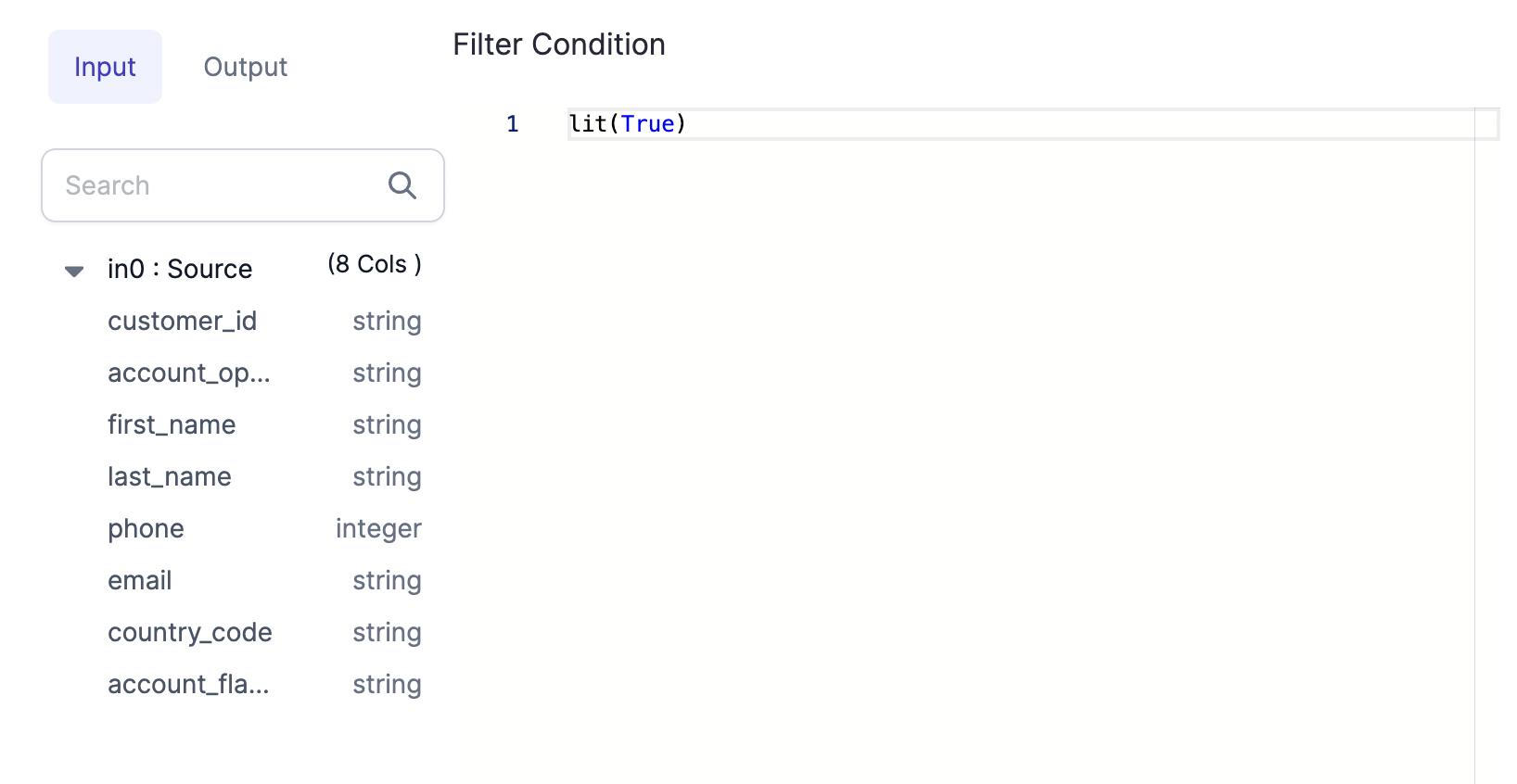

After the Dialog object is defined, it is serialized as JSON and rendered in the UI. When you preview this visual interface of the example code above, it appears like this:

Various UI components can be added to this function such as scroll boxes, tabs, buttons, and more. You can also group these components into different panels. Column Selector: This is a special property that you should add if you want to select the columns from UI and then highlight the used columns using the onChange function.

Validation

Python
Scala

def validate(self, component: Component[FilterProperties]) -> List[Diagnostic]:
        return validateSColumn(component.properties.condition, "condition", component)

def validate(component: Component)(implicit context: WorkflowContext): List[Diagnostic] = {
    val diagnostics =
      validateSColumn(component.properties.condition, "condition", component)
    diagnostics.toList
  }

State Changes

Python
Scala

def onChange(self, oldState: Component[FilterProperties], newState: Component[FilterProperties]) -> Component[
        FilterProperties]:
        newProps = newState.properties
        usedColExps = getColumnsToHighlight2([newProps.condition], newState)
        return newState.bindProperties(replace(newProps, columnsSelector=usedColExps))

def onChange(oldState: Component, newState: Component)(implicit context: WorkflowContext): Component = {
    val newProps = newState.properties
    val portId = newState.ports.inputs.head.id

    val expressions = getColumnsToHighlight(List(newProps.condition), newState)

    newState.copy(properties = newProps.copy(columnsSelector = expressions))
  }

Component Code

Python
Scala

class FilterCode(ComponentCode):
def __init__(self, newProps):
self.props: Filter.FilterProperties = newProps

    def apply(self, spark: SparkSession, in0: DataFrame) -> DataFrame:
            return in0.filter(self.props.condition.column())

class FilterCode(props: PropertiesType)(implicit context: WorkflowContext) extends ComponentCode {

    def apply(spark: SparkSession, in: DataFrame): DataFrame = {
      val out = in.filter(props.condition.column)
      out
    }

  }

If you want to test your Spark code, you can modify properties in the visual preview and save the changes. Then, you can see the generated Spark code which will eventually run on your cluster.

To keep gems generally compatible with each other, they must conform to a common interface. Therefore, as defined in the apply() method, gems must accept and produce DataFrame objects at the input and output ports.

To assist the Spark Catalyst Optimizer to build scalable code, Prophecy performs some minor optimizations to the code generated by the apply() method.

Dataset Format example

The previous examples were for Transformation gems. The following example is the code for a Dataset Format gem.

Python
Scala

from pyspark.sql import SparkSession, DataFrame
from pyspark.sql.types import StructType

from prophecy.cb.server.base.ComponentBuilderBase import ComponentCode, Diagnostic, SeverityLevelEnum
from prophecy.cb.server.base.DatasetBuilderBase import DatasetSpec, DatasetProperties, Component
from prophecy.cb.ui.uispec import *


class ParquetFormat(DatasetSpec):
    name: str = "parquet"
    datasetType: str = "File"

    def optimizeCode(self) -> bool:
        return True

    @dataclass(frozen=True)
    class ParquetProperties(DatasetProperties):
        schema: Optional[StructType] = None
        description: Optional[str] = ""
        useSchema: Optional[bool] = False
        path: str = ""
        mergeSchema: Optional[bool] = None
        datetimeRebaseMode: Optional[str] = None
        int96RebaseMode: Optional[str] = None
        compression: Optional[str] = None
        partitionColumns: Optional[List[str]] = None
        writeMode: Optional[str] = None
        pathGlobFilter: Optional[str] = None
        modifiedBefore: Optional[str] = None
        modifiedAfter: Optional[str] = None
        recursiveFileLookup: Optional[bool] = None

    def sourceDialog(self) -> DatasetDialog:
        return DatasetDialog("parquet") \
            .addSection("LOCATION", TargetLocation("path")) \
            .addSection(
            "PROPERTIES",
            ColumnsLayout(gap=("1rem"), height=("100%"))
                .addColumn(
                ScrollBox().addElement(
                    StackLayout(height=("100%"))
                        .addElement(
                        StackItem(grow=(1)).addElement(
                            FieldPicker(height=("100%"))
                                .addField(
                                TextArea("Description", 2, placeholder="Dataset description..."),
                                "description",
                                True
                            )
                                .addField(Checkbox("Use user-defined schema"), "useSchema", True)
                                .addField(Checkbox("Merge schema"), "mergeSchema")
                                .addField(
                                SelectBox("Datetime Rebase Mode")
                                    .addOption("EXCEPTION", "EXCEPTION")
                                    .addOption("CORRECTED", "CORRECTED")
                                    .addOption("LEGACY", "LEGACY"),
                                "datetimeRebaseMode"
                            )
                                .addField(
                                SelectBox("Int96 Rebase Mode")
                                    .addOption("EXCEPTION", "EXCEPTION")
                                    .addOption("CORRECTED", "CORRECTED")
                                    .addOption("LEGACY", "LEGACY"),
                                "int96RebaseMode"
                            )
                                .addField(Checkbox("Recursive File Lookup"), "recursiveFileLookup")
                                .addField(TextBox("Path Global Filter").bindPlaceholder(""), "pathGlobFilter")
                                .addField(TextBox("Modified Before").bindPlaceholder(""), "modifiedBefore")
                                .addField(TextBox("Modified After").bindPlaceholder(""), "modifiedAfter")
                        )
                    )
                ),
                "auto"
            )
                .addColumn(SchemaTable("").bindProperty("schema"), "5fr")
        ) \
            .addSection(
            "PREVIEW",
            PreviewTable("").bindProperty("schema")
        )

    def targetDialog(self) -> DatasetDialog:
        return DatasetDialog("parquet") \
            .addSection("LOCATION", TargetLocation("path")) \
            .addSection(
            "PROPERTIES",
            ColumnsLayout(gap=("1rem"), height=("100%"))
                .addColumn(
                ScrollBox().addElement(
                    StackLayout(height=("100%")).addElement(
                        StackItem(grow=(1)).addElement(
                            FieldPicker(height=("100%"))
                                .addField(
                                TextArea("Description", 2, placeholder="Dataset description..."),
                                "description",
                                True
                            )
                                .addField(
                                SelectBox("Write Mode")
                                    .addOption("error", "error")
                                    .addOption("overwrite", "overwrite")
                                    .addOption("append", "append")
                                    .addOption("ignore", "ignore"),
                                "writeMode"
                            )
                                .addField(
                                SchemaColumnsDropdown("Partition Columns")
                                    .withMultipleSelection()
                                    .bindSchema("schema")
                                    .showErrorsFor("partitionColumns"),
                                "partitionColumns"
                            )
                                .addField(
                                SelectBox("Compression Codec")
                                    .addOption("none", "none")
                                    .addOption("uncompressed", "uncompressed")
                                    .addOption("gzip", "gzip")
                                    .addOption("lz4", "lz4")
                                    .addOption("snappy", "snappy")
                                    .addOption("lzo", "lzo")
                                    .addOption("brotli", "brotli")
                                    .addOption("zstd", "zstd"),
                                "compression"
                            )
                        )
                    )
                ),
                "auto"
            )
                .addColumn(SchemaTable("").isReadOnly().withoutInferSchema().bindProperty("schema"), "5fr")
        )

    def validate(self, component: Component) -> list:
        diagnostics = super(ParquetFormat, self).validate(component)
        if len(component.properties.path) == 0:
            diagnostics.append(
                Diagnostic("properties.path", "path variable cannot be empty [Location]", SeverityLevelEnum.Error))
        return diagnostics

    def onChange(self, oldState: Component, newState: Component) -> Component:
        return newState

    class ParquetFormatCode(ComponentCode):
        def __init__(self, props):
            self.props: ParquetFormat.ParquetProperties = props

        def sourceApply(self, spark: SparkSession) -> DataFrame:
            reader = spark.read.format("parquet")
            if self.props.mergeSchema is not None:
                reader = reader.option("mergeSchema", self.props.mergeSchema)
            if self.props.datetimeRebaseMode is not None:
                reader = reader.option("datetimeRebaseMode", self.props.datetimeRebaseMode)
            if self.props.int96RebaseMode is not None:
                reader = reader.option("int96RebaseMode", self.props.int96RebaseMode)
            if self.props.modifiedBefore is not None:
                reader = reader.option("modifiedBefore", self.props.modifiedBefore)
            if self.props.modifiedAfter is not None:
                reader = reader.option("modifiedAfter", self.props.modifiedAfter)
            if self.props.recursiveFileLookup is not None:
                reader = reader.option("recursiveFileLookup", self.props.recursiveFileLookup)
            if self.props.pathGlobFilter is not None:
                reader = reader.option("pathGlobFilter", self.props.pathGlobFilter)

            if self.props.schema is not None and self.props.useSchema:
                reader = reader.schema(self.props.schema)

            return reader.load(self.props.path)

        def targetApply(self, spark: SparkSession, in0: DataFrame):
            writer = in0.write.format("parquet")
            if self.props.compression is not None:
                writer = writer.option("compression", self.props.compression)

            if self.props.writeMode is not None:
                writer = writer.mode(self.props.writeMode)
            if self.props.partitionColumns is not None and len(self.props.partitionColumns) > 0:
                writer = writer.partitionBy(*self.props.partitionColumns)

            writer.save(self.props.path)

package io.prophecy.core.instructions.all.datasets

import io.prophecy.core.instructions.all._
import io.prophecy.core.instructions.spec._
import io.prophecy.core.program.WorkflowContext
import org.apache.spark.sql.{DataFrame, SparkSession}
import org.apache.spark.sql.types.StructType
import io.prophecy.libs._

object ParquetFormat extends DatasetSpec {

  val name: String = "parquet"
  val datasetType: String = "File"

  type PropertiesType = ParquetProperties
  case class ParquetProperties(
    @Property("Schema")
    schema: Option[StructType] = None,
    @Property("Description")
    description: Option[String] = Some(""),
    @Property("useSchema")
    useSchema: Option[Boolean] = Some(false),
    @Property("Path")
    path: String = "",
    @Property(
      "",
      "(default is the value specified in spark.sql.parquet.mergeSchema(false)): sets whether we should merge schemas collected from all Parquet part-files. This will override spark.sql.parquet.mergeSchema."
    )
    mergeSchema: Option[Boolean] = None,
    @Property(
      "datetimeRebaseMode",
      "The datetimeRebaseMode option allows to specify the rebasing mode for the values of the DATE, TIMESTAMP_MILLIS, TIMESTAMP_MICROS logical types from the Julian to Proleptic Gregorian calendar."
    )
    datetimeRebaseMode: Option[String] = None,
    @Property(
      "int96RebaseMode",
      "The int96RebaseMode option allows to specify the rebasing mode for INT96 timestamps from the Julian to Proleptic Gregorian calendar."
    )
    int96RebaseMode: Option[String] = None,
    @Property("compression", "(default: none) compression codec to use when saving to file.")
    compression: Option[String] = None,
    @Property("partitionColumns", "Partitioning column.")
    partitionColumns: Option[List[String]] = None,
    @Property("Write Mode", """(default: "error") Specifies the behavior when data or table already exists.""")
    writeMode: Option[String] = None,
    @Property(
      "",
      "an optional glob pattern to only include files with paths matching the pattern. The syntax follows org.apache.hadoop.fs.GlobFilter. It does not change the behavior of partition discovery."
    )
    pathGlobFilter: Option[String] = None,
    @Property(
      "",
      "(batch only): an optional timestamp to only include files with modification times occurring before the specified Time. The provided timestamp must be in the following form: YYYY-MM-DDTHH:mm:ss (e.g. 2020-06-01T13:00:00)"
    )
    modifiedBefore: Option[String] = None,
    @Property(
      "",
      "(batch only): an optional timestamp to only include files with modification times occurring after the specified Time. The provided timestamp must be in the following form: YYYY-MM-DDTHH:mm:ss (e.g. 2020-06-01T13:00:00)"
    )
    modifiedAfter: Option[String] = None,
    @Property("", "recursively scan a directory for files. Using this option disables partition discovery")
    recursiveFileLookup: Option[Boolean] = None
  ) extends DatasetProperties

  def sourceDialog: DatasetDialog = DatasetDialog("parquet")
    .addSection("LOCATION", TargetLocation("path"))
    .addSection(
      "PROPERTIES",
      ColumnsLayout(gap = Some("1rem"), height = Some("100%"))
        .addColumn(
          ScrollBox().addElement(
            StackLayout(height = Some("100%"))
              .addElement(
                StackItem(grow = Some(1)).addElement(
                  FieldPicker(height = Some("100%"))
                    .addField(
                      TextArea("Description", 2, placeholder = "Dataset description..."),
                      "description",
                      true
                    )
                    .addField(Checkbox("Use user-defined schema"), "useSchema", true)
                    .addField(Checkbox("Merge schema"), "mergeSchema")
                    .addField(
                      SelectBox("Datetime Rebase Mode")
                        .addOption("EXCEPTION", "EXCEPTION")
                        .addOption("CORRECTED", "CORRECTED")
                        .addOption("LEGACY", "LEGACY"),
                      "datetimeRebaseMode"
                    )
                    .addField(
                      SelectBox("Int96 Rebase Mode")
                        .addOption("EXCEPTION", "EXCEPTION")
                        .addOption("CORRECTED", "CORRECTED")
                        .addOption("LEGACY", "LEGACY"),
                      "int96RebaseMode"
                    )
                    .addField(Checkbox("Recursive File Lookup"), "recursiveFileLookup")
                    .addField(TextBox("Path Global Filter").bindPlaceholder(""), "pathGlobFilter")
                    .addField(TextBox("Modified Before").bindPlaceholder(""), "modifiedBefore")
                    .addField(TextBox("Modified After").bindPlaceholder(""), "modifiedAfter")
                )
              )
          ),
          "auto"
        )
        .addColumn(SchemaTable("").bindProperty("schema"), "5fr")
    )
    .addSection(
      "PREVIEW",
      PreviewTable("").bindProperty("schema")
    )

  def targetDialog: DatasetDialog = DatasetDialog("parquet")
    .addSection("LOCATION", TargetLocation("path"))
    .addSection(
      "PROPERTIES",
      ColumnsLayout(gap = Some("1rem"), height = Some("100%"))
        .addColumn(
          ScrollBox().addElement(
            StackLayout(height = Some("100%")).addElement(
              StackItem(grow = Some(1)).addElement(
                FieldPicker(height = Some("100%"))
                  .addField(
                    TextArea("Description", 2, placeholder = "Dataset description..."),
                    "description",
                    true
                  )
                  .addField(
                    SelectBox("Write Mode")
                      .addOption("error", "error")
                      .addOption("overwrite", "overwrite")
                      .addOption("append", "append")
                      .addOption("ignore", "ignore"),
                    "writeMode"
                  )
                  .addField(
                    SchemaColumnsDropdown("Partition Columns")
                      .withMultipleSelection()
                      .bindSchema("schema")
                      .showErrorsFor("partitionColumns"),
                    "partitionColumns"
                  )
                  .addField(
                    SelectBox("Compression Codec")
                      .addOption("none", "none")
                      .addOption("uncompressed", "uncompressed")
                      .addOption("gzip", "gzip")
                      .addOption("lz4", "lz4")
                      .addOption("snappy", "snappy")
                      .addOption("lzo", "lzo")
                      .addOption("brotli", "brotli")
                      .addOption("zstd", "zstd"),
                    "compression"
                  )
              )
            )
          ),
          "auto"
        )
        .addColumn(SchemaTable("").isReadOnly().withoutInferSchema().bindProperty("schema"), "5fr")
    )

  override def validate(component: Component)(implicit context: WorkflowContext): List[Diagnostic] = {
    import scala.collection.mutable.ListBuffer
    val diagnostics = ListBuffer[Diagnostic]()
    diagnostics ++= super.validate(component)

    if (component.properties.path.isEmpty) {
      diagnostics += Diagnostic("properties.path", "path variable cannot be empty [Location]", SeverityLevel.Error)
    }
    if (component.properties.schema.isEmpty) {
      // diagnostics += Diagnostic("properties.schema", "Schema cannot be empty [Properties]", SeverityLevel.Error)
    }

    diagnostics.toList
  }

  def onChange(oldState: Component, newState: Component)(implicit context: WorkflowContext): Component = newState

  class ParquetFormatCode(props: ParquetProperties) extends ComponentCode {

    def sourceApply(spark: SparkSession): DataFrame = {
      var reader = spark.read
        .format("parquet")
        .option("mergeSchema", props.mergeSchema)
        .option("datetimeRebaseMode", props.datetimeRebaseMode)
        .option("int96RebaseMode", props.int96RebaseMode)
        .option("modifiedBefore", props.modifiedBefore)
        .option("modifiedAfter", props.modifiedAfter)
        .option("recursiveFileLookup", props.recursiveFileLookup)
        .option("pathGlobFilter", props.pathGlobFilter)

      if (props.useSchema.isDefined && props.useSchema.get)
        props.schema.foreach(schema ⇒ reader = reader.schema(schema))

      reader.load(props.path)
    }

    def targetApply(spark: SparkSession, in: DataFrame): Unit = {
      var writer = in.write
        .format("parquet")
        .option("compression", props.compression)

      props.writeMode.foreach { mode ⇒
        writer = writer.mode(mode)
      }
      props.partitionColumns.foreach(pcols ⇒
        writer = pcols match {
          case Nil ⇒ writer
          case _ ⇒ writer.partitionBy(pcols: _*)
        }
      )
      writer.save(props.path)
    }

  }

}

Getting started

Development

Production

Execution

Extensibility

Requirements

Mode

Classes

Functions

Examples

Parent Class

Properties Classes

Dialog (UI)

Validation

State Changes

Component Code

Dataset Format example

Getting started

Development

Production

Execution

Extensibility

​Requirements

​Mode

​Classes

​Functions

​Examples

​Parent Class

​Properties Classes

​Dialog (UI)

​Validation

​State Changes

​Component Code

​Dataset Format example

Requirements

Mode

Classes

Functions

Examples

Parent Class

Properties Classes

Dialog (UI)

Validation

State Changes

Component Code

Dataset Format example
