Delta

Dependencies & cluster requirements

Dependencies:

ProphecySparkBasicsPython 0.0.1+
ProphecySparkBasicsScala 0.0.1+

Cluster requirements:

UC dedicated clusters 14.3+ supported
UC standard clusters 14.3+ supported
Livy clusters not supported

A Delta (Delta Lake) file type:

Is an optimized storage layer that allows you to store data and tables in the Databricks lakehouse.
Extends Parquet data files with a file-based transaction log for ACID transactions and scalable metadata handling.
Has a tight integration with structured streaming, which allows you to use a single copy of data for both batch and streaming operations and provides incremental processing at scale.

Parameters

Parameter	Tab	Description
Location	Location	File path to read from or write to the Delta file.
Schema	Properties	Schema to apply on the loaded data. In the Source gem, you can define or edit the schema visually or in JSON code. In the Target gem, you can view the schema visually or as JSON code.

Source

The Source gem reads data from Delta files and allows you to optionally specify the following additional properties.

Source properties

Property name	Description	Default
Description	Description of your dataset.	None
Read timestamp	Time travel to a specific timestamp. This value is between the first commit timestamp and the latest commit timestamp in the table.	None
Read version	Time travel to a specific version of the table. This value is an interger between the minimum and maximum version of the table. By default, the Source gem fetches the most recent version of each row if you don’t use a time travel option.	None

You can only select Read Timestamp or Read Version, not both.

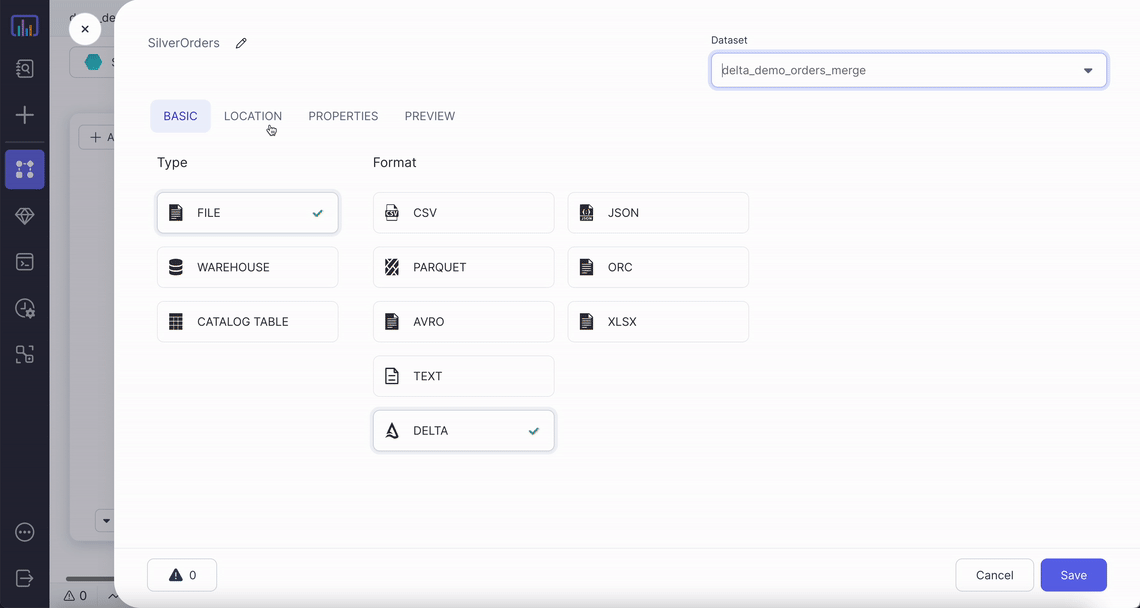

Example

Compiled code

To see the compiled code of your project, switch to the Code view in the project header.

Without time travel

def ReadDelta(spark: SparkSession) -> DataFrame:
 return spark.read.format("delta").load("dbfs:/FileStore/data_engg/delta_demo/silver/orders")

object ReadDelta {

 def apply(spark: SparkSession): DataFrame = {
 spark.read.format("delta").load("dbfs:/FileStore/data_engg/delta_demo/silver/orders")
 }

}

Timestamp-based time travel

def ReadDelta(spark: SparkSession) -> DataFrame:
 return spark.read.format("delta").option("timestampAsOf", "2022-05-05")\
 .load("dbfs:/FileStore/data_engg/delta_demo/silver/orders")

object ReadDelta {

 def apply(spark: SparkSession): DataFrame = {
 spark.read.format("delta").option("timestampAsOf", "2022-05-05")
 .load("dbfs:/FileStore/data_engg/delta_demo/silver/orders")
 }

}

Version-based time travel

def readDelta(spark: SparkSession) -> DataFrame:
 return spark.read.format("delta").option("versionAsOf", "0")\
 .load("dbfs:/FileStore/data_engg/delta_demo/silver/orders")

object readDelta {

 def apply(spark: SparkSession): DataFrame = {
 spark.read.format("delta").option("versionAsOf", "0")
 .load("dbfs:/FileStore/data_engg/delta_demo/silver/orders")
 }

}

Target

The Target gem writes data to Delta files and allows you to optionally specify the following additional properties.

Target properties

Property name	Description	Default
Description	Description of your dataset.	None
Write Mode	How to handle existing data. For a list of the possible values, see Supported write modes.	`error`
Overwrite table schema	Whether to overwrite the schema of the Delta table with the schema of the incoming `DataFrame`.	false
Merge `DataFrame` schema into table schema	Whether to automatically add any columns present in the `DataFrame` but not in the target table to the end of the schema as part of a write transaction.	false
Partition Columns	List of columns to partition the Delta table by.	None
Overwrite partition predicate	Selectively overwrite the data that satisfies the given where clause expression.	None
Optimize write	Whether to optimize the Spark partition sizes based on the actual data.	false

Supported write modes

Write mode	Description
error	If the data already exists, throw an exception.
overwrite	If the data already exists, overwrite the data with the contents of the `DataFrame`.
append	If the data already exists, append the contents of the `DataFrame`.
ignore	If the data already exists, do nothing with the contents of the `DataFrame`. This is similar to the `CREATE TABLE IF NOT EXISTS` clause in SQL.
merge	Use the Delta `merge` command to insert, delete and update data. For more information, see Delta MERGE.
scd2 merge	Store and manage the current and historical data over time. For more information, see Delta MERGE.

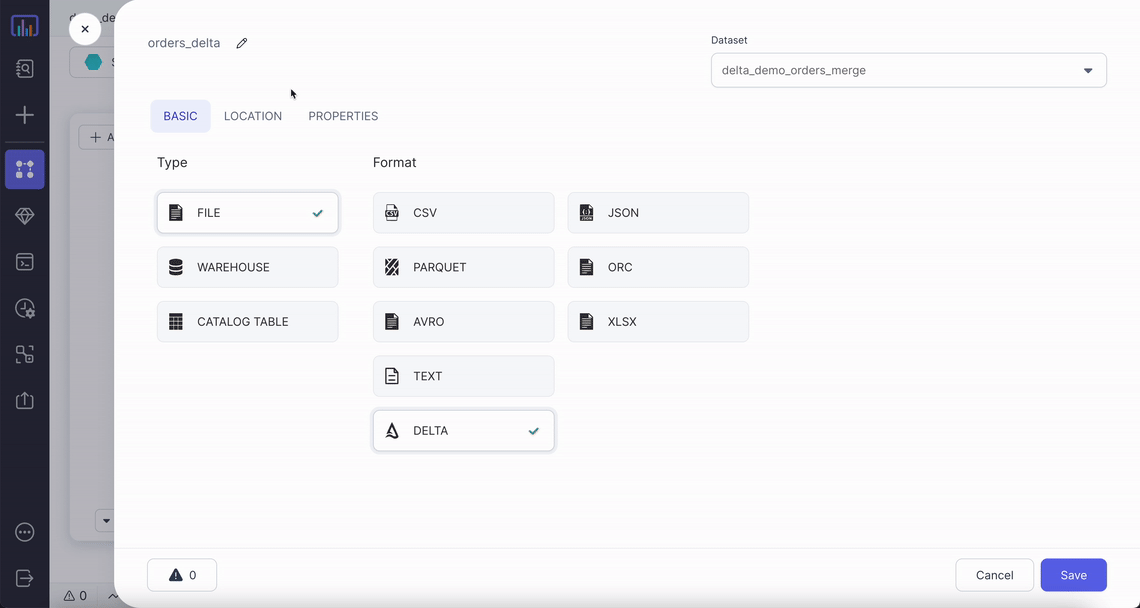

Target Example

Compiled code

To see the compiled code of your project, switch to the Code view in the project header.

def writeDelta(spark: SparkSession, in0: DataFrame):
 return in0.write\
 .format("delta")\
 .option("optimizeWrite", True)\
 .option("mergeSchema", True)\
 .option("replaceWhere", "order_dt > '2022-01-01'")\
 .option("overwriteSchema", True)\
 .mode("overwrite")\
 .partitionBy("order_dt")\
 .save("dbfs:/FileStore/data_engg/delta_demo/silver/orders")

object writeDelta {

 def apply(spark: SparkSession, in: DataFrame): Unit = {
 in0.write
 .format("delta")
 .option("optimizeWrite", True)
 .option("mergeSchema", True)
 .option("replaceWhere", "order_dt > '2022-01-01'")
 .option("overwriteSchema", True)
 .mode("overwrite")
 .partitionBy("order_dt")
 .save("dbfs:/FileStore/data_engg/delta_demo/silver/orders")
 }

}

Delta MERGE

You can upsert data from a source DataFrame into a target Delta table by using the MERGE operation. Delta MERGE supports Insert, Update, and Delete operations and modifies records of the most common slowly changing dimension (SCD) cases in one of the following ways:

SCD1: Delta tables do not retain history.
SCD2: Delta tables retain history at the row level.
SCD3: Delta tables retain history at the column level.

SCD1

The following lists the properties in an SCD1 MERGE condition where Delta tables do not retain historical data.

Properties

Property name	Description	Default
Source Alias	Alias to use for the source `DataFrame`.	`source`
Target Alias	Alias to use for existing target Delta table.	`taret`
Merge condition	Condition to merge data from source `DataFrame` to target table. Delta can perform an update, delete, or insert action.	None
When Matched Update Action	Update the row from your Source gem that exists in your Target gem based on your `When Matched Update Condition` property.	`update`
When Matched Update Condition	Additional condition for updating a row. If you specify a condition, it must evaluate to `true` for the Target gem to update the row.	None
When Matched Update Expressions	Expressions for setting the values of columns that the Target gem needs to update. If you add some expressions, enable the Update Remaining Columns from Source checkbox to also update all remaining columns from the source `DataFrame`.	None
When Matched Delete Action	Delete rows if your `When Matched Delete Condition` property and the optional additional condition evaluates to `true`. Delete removes the data from the latest version of the Delta table but does not remove it from the physical storage until you explicitily vacuum the old versions. To learn more, see Remove files no longer referenced by a Delta table.	`ignore`
When Matched Delete Condition	Additional condition for deleting a row. If you specify a condition, it must evaluate to `true` for the Target gem to delete the row.	False
When Not Matched Action	Action to perform if the row from your Source gem is not present in your Target gem based on your `When Not Matched Condition` property.	`insert`
When Not Matched Condition	Condition for inserting a row. If you specify a condition, it must evaluate to `true` for the Target gem to insert a new row.	None
When Not Matched Expressions	Expressions for setting the values of columns that the Target gem needs to update.	None

You must set at least one action out of update, delete or insert.
A merge operation fails if multiple rows of the source DataFrame matches and the merge attempts to update the same rows of the target Delta table. You can place deduplicate gems before your Target gem if you expect duplicate rows in your Source gem.

When possible, provide predicates on the partition columns for a partitioned Delta table because predicates can significantly speed up the operations.

Example

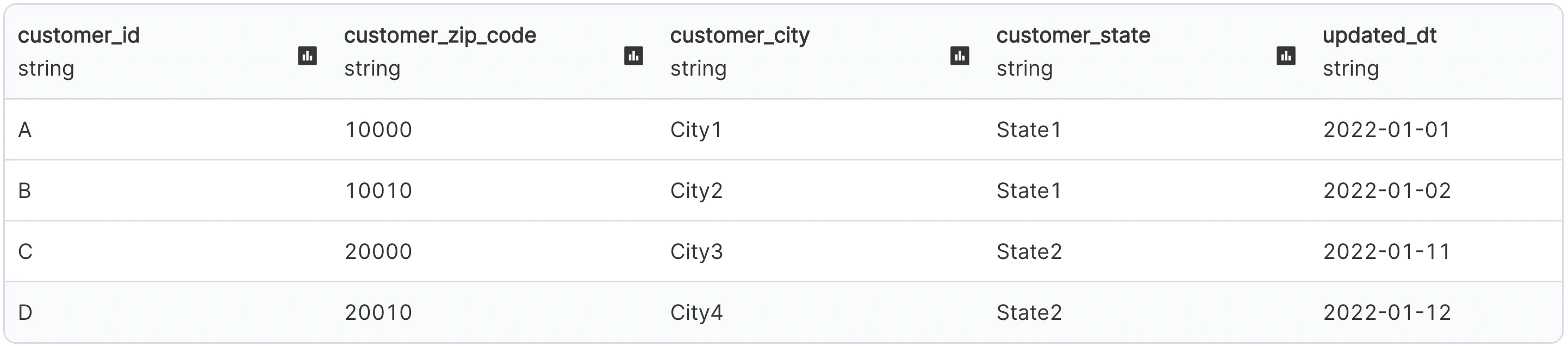

Assume you have the following customers table:

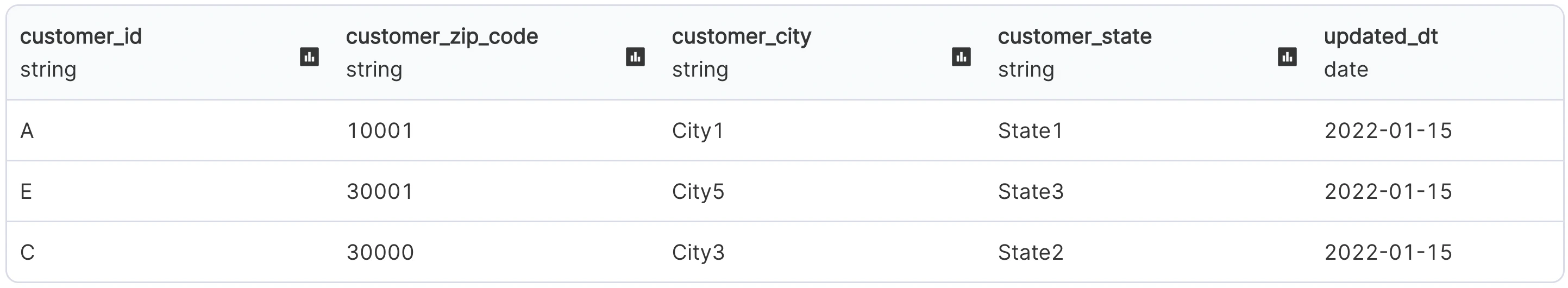

And, you want to make the following updates to the table:

The following shows the output and configurations for an SCD1 merge:

Compiled code

To see the compiled code of your project, switch to the Code view in the project header.

def writeDeltaMerge(spark: SparkSession, in0: DataFrame):
 from delta.tables import DeltaTable, DeltaMergeBuilder

 if DeltaTable.isDeltaTable(spark, "dbfs:/FileStore/data_engg/delta_demo/silver/customers_scd1"):
 DeltaTable\
 .forPath(spark, "dbfs:/FileStore/data_engg/delta_demo/silver/customers_scd1")\
 .alias("target")\
 .merge(in0.alias("source"), (col("source.customer_id") == col("target.customer_id")))\
 .whenMatchedUpdateAll()\
 .whenNotMatchedInsertAll()\
 .execute()
 else:
 in0.write\
 .format("delta")\
 .mode("overwrite")\
 .save("dbfs:/FileStore/data_engg/delta_demo/silver/customers_scd1")

object writeDeltaMerge {

 def apply(spark: SparkSession, in: DataFrame): Unit = {
 import _root_.io.delta.tables._
 if (DeltaTable.isDeltaTable(spark, "dbfs:/FileStore/data_engg/delta_demo/silver/customers_scd1")) {
 DeltaTable
 .forPath(spark, "dbfs:/FileStore/data_engg/delta_demo/silver/customers_scd1")
 .as("target")
 .merge(in0.as("source"), (col("source.customer_id") === col("target.customer_id")))
 .whenMatched()
 .updateAll()
 .whenNotMatched()
 .insertAll()
 .execute()
 }
 else {
 in0.write
 .format("delta")
 .mode("overwrite")
 .save("dbfs:/FileStore/data_engg/delta_demo/silver/customers_scd1")
 }
 }

}

SCD2

The following lists the properties in an SCD2 MERGE condition where Delta tables retain history at the row level.

Parameters

Property name	Description	Default
Key Columns	List of key columns to remain constant.	None
Historic Columns	List of columns to change over time and maintain its history.	None
From time column	Time from which a particular row is valid.	None
To time column	Time till which a particular row is not valid anymore.	None
Name of the column used as min/old-value flag	Column to store the flag as `true` for the first entry of a particular key.	None
Name of the column used as max/latest flag	Column to store the flag as `true` for the last entry of a particular key.	None
Flag values	Format of the min and max flag. Possible values are: `true/false`, or `0/1`.	None

Example

Continuing from the SCD1 example, you can use the Delta log to capture the historical customer_zip_code at the row-level. The following shows the output and configurations for an SCD2 merge:

Compiled code

To see the compiled code of your project, switch to the Code view in the project header.

def writeDeltaSCD2(spark: SparkSession, in0: DataFrame):
 from delta.tables import DeltaTable, DeltaMergeBuilder

 if DeltaTable.isDeltaTable(spark, "dbfs:/FileStore/data_engg/delta_demo/silver/customers_scd2"):
 existingTable = DeltaTable.forPath(
 spark, "dbfs:/FileStore/data_engg/delta_demo/silver/customers_scd2"
 )
 updatesDF = in0.withColumn("minFlag", lit("true")).withColumn(
 "maxFlag", lit("true")
 )
 existingDF = existingTable.toDF()
 updateColumns = updatesDF.columns
 stagedUpdatesDF = (
 updatesDF.join(existingDF, ["customer_id"])
 .where(
 (
 (existingDF["maxFlag"] == lit("true"))
 & (
 (
 (
 existingDF["customer_zip_code"]
 != updatesDF["customer_zip_code"]
 )
 | (
 existingDF["customer_city"]
 != updatesDF["customer_city"]
 )
 )
 | (existingDF["customer_state"] != updatesDF["customer_state"])
 )
 )
 )
 .select(*[updatesDF[val] for val in updateColumns])
 .withColumn("minFlag", lit("false"))
 .withColumn("mergeKey", lit(None))
 .union(updatesDF.withColumn("mergeKey", concat("customer_id")))
 )
 existingTable.alias("existingTable").merge(
 stagedUpdatesDF.alias("staged_updates"),
 concat(existingDF["customer_id"]) == stagedUpdatesDF["mergeKey"],
 ).whenMatchedUpdate(
 condition=(
 (existingDF["maxFlag"] == lit("true"))
 & (
 (
 (
 existingDF["customer_zip_code"]
 != stagedUpdatesDF["customer_zip_code"]
 )
 | (
 existingDF["customer_city"]
 != stagedUpdatesDF["customer_city"]
 )
 )
 | (
 existingDF["customer_state"]
 != stagedUpdatesDF["customer_state"]
 )
 )
 ),
 set={"maxFlag": "false", "end_date": "staged_updates.updated_dt"},
 )\
 .whenNotMatchedInsertAll()\
 .execute()
 else:
 in0.write\
 .format("delta")\
 .mode("overwrite")\
 .save("dbfs:/FileStore/data_engg/delta_demo/silver/customers_scd2")

object writeDeltaSCD2 {

 def apply(spark: SparkSession, in: DataFrame): Unit = {
 import _root_.io.delta.tables._
 if (
 DeltaTable.isDeltaTable(
 spark,
 "dbfs:/FileStore/data_engg/delta_demo/silver/customers_scd2"
 )
 ) {
 val updatesDF = in
 .withColumn("minFlag", lit("true"))
 .withColumn("maxFlag", lit("true"))
 val existingTable: DeltaTable = DeltaTable.forPath(
 spark,
 "dbfs:/FileStore/data_engg/delta_demo/silver/customers_scd2"
 )
 val existingDF: DataFrame = existingTable.toDF
 val stagedUpdatesDF = updatesDF
 .join(existingDF, List("customer_id"))
 .where(
 existingDF.col("maxFlag") === lit("true") && List(
 existingDF.col("customer_zip_code") =!= updatesDF
 .col("customer_zip_code"),
 existingDF.col("customer_city") =!= updatesDF
 .col("customer_city"),
 existingDF.col("customer_state") =!= updatesDF
 .col("customer_state")
 ).reduce((c1, c2) => c1 || c2)
 )
 .select(updatesDF.columns.map(x => updatesDF.col(x)): _*)
 .withColumn("minFlag", lit("false"))
 .withColumn("mergeKey", lit(null))
 .union(updatesDF.withColumn("mergeKey", concat(col("customer_id"))))
 existingTable
 .as("existingTable")
 .merge(
 stagedUpdatesDF.as("staged_updates"),
 concat(existingDF.col("customer_id")) === stagedUpdatesDF(
 "mergeKey"
 )
 )
 .whenMatched(
 existingDF.col("maxFlag") === lit("true") && List(
 existingDF.col("customer_zip_code") =!= stagedUpdatesDF
 .col("customer_zip_code"),
 existingDF.col("customer_city") =!= stagedUpdatesDF
 .col("customer_city"),
 existingDF.col("customer_state") =!= stagedUpdatesDF
 .col("customer_state")
 ).reduce((c1, c2) => c1 || c2)
 )
 .updateExpr(
 Map("maxFlag" → "false", "end_date" → "staged_updates.updated_dt")
 )
 .whenNotMatched()
 .insertAll()
 .execute()
 } else {
 in0.write
 .format("delta")
 .mode("overwrite")
 .save("dbfs:/FileStore/data_engg/delta_demo/silver/orders")
 }

 }

}

SCD3

Continuing from the SCD2 example, you use the Delta log to capture the historical customer_zip_code at the column-level. The following shows the output and configurations for an SCD3 merge:

To see the compiled code of your project, switch to the Code view in the project header.

To learn more about how Prophecy uses the Delta file type, see Prophecy with Delta — making data lakehouses easier.

Overview

Sources and targets

Data processing

Advanced

Parameters

Source

Source properties

Example

Compiled code

Without time travel

Timestamp-based time travel

Version-based time travel

Target

Target properties

Supported write modes

Target Example

Compiled code

Delta MERGE

SCD1

Properties

Example

Compiled code

SCD2

Parameters

Example

Compiled code

SCD3

​Parameters

​Source

​Source properties

​Example

​Compiled code

​Without time travel

​Timestamp-based time travel

​Version-based time travel

​Target

​Target properties

​Supported write modes

​Target Example

​Compiled code

​Delta MERGE

​SCD1

​Properties

​Example

​Compiled code

​SCD2

​Parameters

​Example

​Compiled code

​SCD3

Parameters

Source

Source properties

Example

Compiled code

Without time travel

Timestamp-based time travel

Version-based time travel

Target

Target properties

Supported write modes

Target Example

Compiled code

Delta MERGE

SCD1

Properties

Example

Compiled code

SCD2

Parameters

Example

Compiled code

SCD3
