XLSX (Excel)

Dependencies & cluster requirements

Dependencies:

ProphecySparkBasicsPython 0.0.1+
ProphecySparkBasicsScala 0.0.1+

Cluster requirements:

UC dedicated clusters 14.3+ supported
UC standard clusters 15.4+ supported
Livy clusters not supported

The XLSX (Excel) file gem can read from or write to the file storage (Databricks Volumes or DBFS) of your fabric connection or from a SharePoint or SFTP connection.

Prerequisites

The XLSX gem has various requirements depending on its configuration.

See Spark dependencies for information on adding pipeline dependencies.

Read with Pandas

To read/write XLSX files using the Pandas Library Type, you need to:

Add the following Python dependencies to your pipeline:
pandas
glob2
openpyxl

You will need to restart or reattach your cluster for these libraries to be installed.

For Databricks Serverless:
Update ProphecySparkBasicsPython 0.2.5+
Update ProphecyLibsPython 2.1.5+

Read with Crealytics

To read/write XLSX files using the Crealytics Library Type:

Add spark-excel library as a pipeline dependency using the Maven coordinate com.crealytics:spark-excel_2.12:3.5.1_0.20.4

Parameters

Parameter	Tab	Description
Location	Location	Where to read from or write to the XLSX file. You can read XLSX files from the following locations: File Location: Provide the Databricks Volume or DBFS path to the file. SharePoint: Provide the SharePoint path to the file. SFTP: Provide the path in the SFTP server to the file.
Schema	Properties	Schema to apply on the loaded data. In the Source gem, you can define or edit the schema visually or in JSON code. In the Target gem, you can view the schema visually or as JSON code.
Library Type	Properties	(File Location only) Choose whether to read/write files using Pandas or Crealytics.

Source

The Source gem reads data from XLSX files and allows you to optionally specify the following additional properties.

Source properties

Property name	Description	Default
Enforce Schema	Whether to use the schema you define.	false
Header	Whether to read the first line as a header.	true
Description	Description of your dataset.	None
Data Address	Location to read data addresses from. To learn more, see Data Addresses.	`A1` (Everything)
Column Name of Corrupt Record	Rename the field the PERMISSIVE mode creates to store malformed data.	`_corrupt_records`
Column Name of Row Number	Name of the column to create using the original row number.	None
Date Format	String that indicates a date format.	`yyyy-MM-dd`
Excerpt Size	Excerpt Size.	None
File Extension	Extension of the file to read in.	`xlsx`
Ignore After Header	Number of rows to ignore after the header.	None
Ignore leading white spaces from values	Whether to skip the leading whitespaces from values the Source gem reads.	false
Ignore trailing white spaces from values	Whether to skip the trailing whitespaces from values the Source gem reads.	false
Infer Schema	Whether to automatically infer the input schema from the data. This requires one extra pass over the data. Note: The `spark-excel` library provides this setting and is different than the `Infer Schema` button in the Prophecy UI. Both should provide the same results.	false
Locale	Sets a locale as language tag in IETF BCP 47 format.	`en-US`
NaN Value	Sets the string representation of a non-number value.	`NaN`
Negative Infinite value	Sets the string representation of a negative infinity value.	`-Inf`
Null Value	Sets the string representation of a null value.	None
Parse Mode	How to handle corrupt data. For a list of the possible values, see Supported parse modes.	`Permissive`
Positive Infinite value	Sets the string representation of a positive infinity value.	`Inf`
Sampling Ratio	Defines a fraction of rows to use for schema inferring	`1.0`
Timestamp Format	Sets the string that indicates a timestamp format.	`yyyy-MM-dd'T'HH:mm:ss[.SSS][XXX]`
Use Null for Error Cells	Whether to use null for cells with errors.	false
Workbook Password	Password to secure your workbook.	None
Time Zone ID	Timezone ID for the `Date` and `Timestamp` from the IANA Time Zone Database. Note: For a list of valid values, see Class ZoneId.	None
Temporary file threshold	When the Source gem should start writing data to temporary files on disk instead of keeping it in memory.	None
Maximum rows in memory	Maximum amount of rows to have in memory.	None
Maximum byte array size	Maximum size of your array.	None

Supported parse modes

Mode	Description
Permissive	Put the malformed string into the corrupt records column, and set the malformed fields to null.
Drop Malformed	Ignore the entire corrupted record. This mode is not supported in the CSV built-in functions.
Fail Fast	Throw an exception when it meets a corrupted record.

Target

The Target gem writes data to XLSX files and allows you to optionally specify the following additional properties.

Target properties

Property name	Description	Default
Data Address	Location to write data addresses to. To learn more, see Data Addresses.	`A1`
File Extension	File extension of the file to write to.	`xlsx`
Header	Whether to write a header to the file.	true
Locale	Sets a locale as language tag in IETF BCP 47 format.	`en-US`
Date Format	String that indicates a date format.	`yyyy-MM-dd`
Use Plain Number Format	Whether to format the cells without rounding and scientific notations.	false
Workbook Password	Password to secure your workbook.	None
Write Mode	How to handle existing data. For a list of the possible values, see Supported write modes.	`append`
Partition Columns	List of columns to partition the XLSX files by.	None
Create single named XLSX file	Whether to create a single XLSX file.	false

Supported write modes

Write mode	Description
error	If the data already exists, throw an exception.
overwrite	If the data already exists, overwrite the data with the contents of the `DataFrame`.
append	If the data already exists, append the contents of the `DataFrame`.
ignore	If the data already exists, do nothing with the contents of the `DataFrame`. This is similar to the `CREATE TABLE IF NOT EXISTS` clause in SQL.

Writing a single output file

Due to Spark’s distributed nature, when you work with text-based files, your output is a directory containing multiple partitioned files. For example, if you write to the following location: dbfs:/FileStore/Users/test/customers.xlsx, you see the following in the DBFS:

A customers.xlsx directory.
Partitions within the customers.xlsx directory.

Each partition is a separate valid XLSX file with a segment of the overall output data. If you want the Target gem to output a single file:

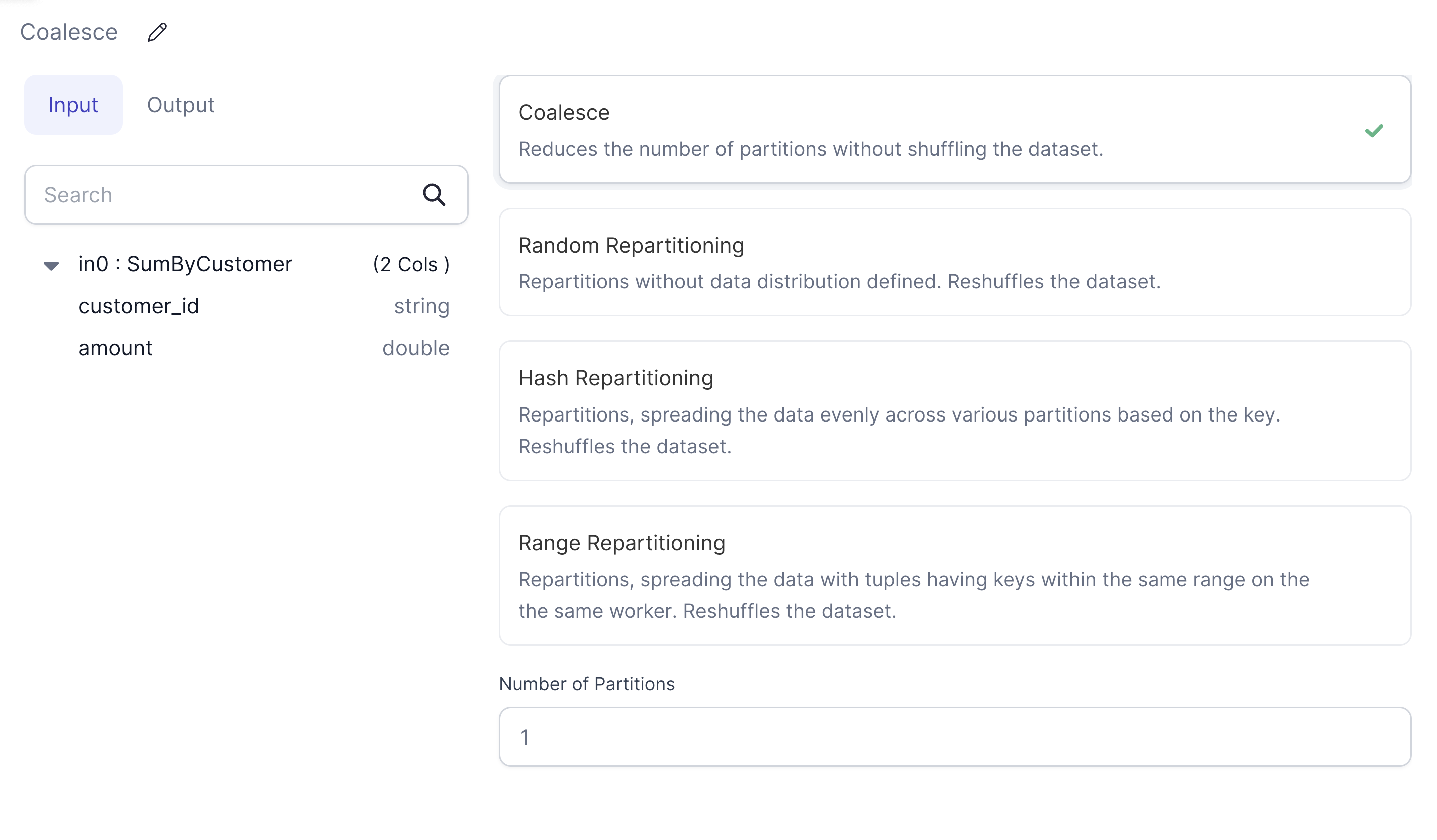

Add a Repartition gem in Coalesce mode with the Partition Count set to 1.

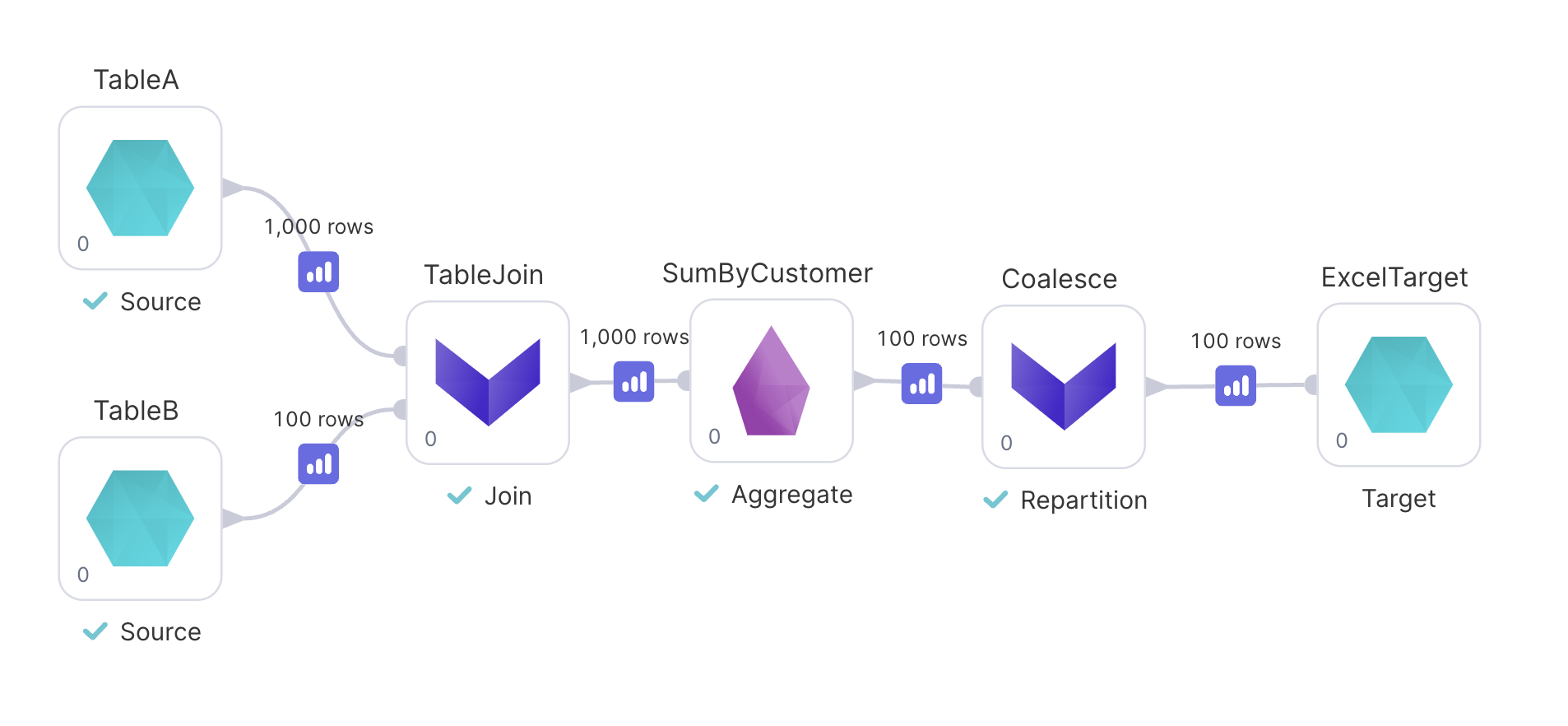

Connect the Repartition gem between your second-to-last transformation and the Target gem.
Run your pipeline.

After you run your pipeline, your output is still a directory, but this time it only contains a single output file.

Example code

To see the compiled code of your project, switch to the Code view in the project header.

def Demo_XLSX_Source(spark: SparkSession) -> DataFrame:
 if Config.fabricName == "dev":
 return spark.read\
 .format("excel")\
 .option("header", True)\
 .option("dataAddress", "A1")\
 .option("inferSchema", True)\
 .load("dbfs:/FileStore/Users/scott/plain_number.xlsx")
 else:
 raise Exception("No valid dataset present to read fabric")
