Kafka

Dependencies & cluster requirements

Dependencies:

ProphecySparkBasicsPython 0.2.49+
ProphecySparkBasicsScala 0.0.1+
ProphecyLibsPython 1.9.24+

Cluster requirements:

UC dedicated clusters not supported
UC standard clusters 14.3+ supported
Livy clusters not supported

The Kafka file type is used in Apache Kafka. Read and write Kafka files using a Source or Target gem.

Source

The Source gem reads data from Kafka stream in batch mode and allows you to optionally specify the following additional properties. This means that Kafka only reads data incrementally from the last offset stored in the specified Metadata table. If the Metadata table is not present, then Kafka reads data from the earliest offset.

Source location

Parameter	Description
Bootstrap Server/Broker List	Comma separated list of Kafka brokers.
Group Id (Optional)	Kafka consumer group ID. Used to identify the consumer group for offset management.
Session timeout (in ms)	Session timeout for Kafka consumer. Default: `6000`
Security Protocol	Security protocol for Kafka. Default value is `NO_AUTH`.
SASL Mechanisms	SASL Mechanism for authentication. Default value is `NO_AUTH`.
Credentials	How to provide your credentials. You can select: `Databricks Secrets`, `Username & Password`, `Environment variables`, or `None`
Kafka topic	Comma separated list of Kafka topics.
Store offsets read per partition in Delta table	Whether to store offsets read per partition in Delta table. Default: false
Metadata Table	Delta table to store offsets for each topic and partition.
Use SSL Trust Store	Enable SSL trust store configuration.
Trust Store Location	Path to the SSL trust store file. Required when SSL Trust Store is enabled.
Trust Store Password	Password for the SSL trust store file. Required when SSL Trust Store is enabled.

Source properties

Property name	Description	Default
Kerberos service name for Kafka SASL	Name of your Kerberos service to use in Kafka.	None

Example

Compiled code

To see the compiled code of your project, switch to the Code view in the project header.

def KafkaSource(spark: SparkSession) -> DataFrame:
 from delta.tables import DeltaTable

 if spark.catalog._jcatalog.tableExists(f"metadata.kafka_offsets"):
 offset_dict = {}

 for row in DeltaTable.forName(spark, f"metadata.kafka_offsets").toDF().collect():
 if row["topic"] in offset_dict.keys():
 offset_dict[row["topic"]].update({row["partition"] : row["max_offset"] + 1})
 else:
 offset_dict[row["topic"]] = {row["partition"] : row["max_offset"] + 1}

 return (spark.read\
 .format("kafka")\
 .options(
 **{
 "kafka.security.protocol": "NO_AUTH",
 "kafka.sasl.mechanism": "NO_AUTH",
 "kafka.bootstrap.servers": "broker1.aws.com:9094,broker2.aws.com:9094",
 "kafka.session.timeout.ms": "6000",
 "group.id": "group_id_1",
 "subscribe": "my_first_topic,my_second_topic",
 "startingOffsets": json.dumps(offset_dict),
 "kafka.ssl.truststore.location": "dbfs:/Volumes/tmp/kafka.client.truststore.jks",
 "kafka.ssl.truststore.password": "password",
 }
 )\
 .load()\
 .withColumn("value", col("value").cast("string"))\
 .withColumn("key", col("key").cast("string")))
 else:
 return (spark.read\
 .format("kafka")\
 .options(
 **{
 "kafka.security.protocol": "NO_AUTH",
 "kafka.sasl.mechanism": "NO_AUTH",
 "kafka.bootstrap.servers": "broker1.aws.com:9094,broker2.aws.com:9094",
 "kafka.session.timeout.ms": "6000",
 "group.id": "group_id_1",
 "subscribe": "my_first_topic,my_second_topic",
 "kafka.ssl.truststore.location": "dbfs:/Volumes/tmp/kafka.client.truststore.jks",
 "kafka.ssl.truststore.password": "password",
 }
 )\
 .load()\
 .withColumn("value", col("value").cast("string"))\
 .withColumn("key", col("key").cast("string")))

Target

The Target gem writes data to each row from the Dataframe to a Kafka topic as JSON messages and allows you to optionally specify the following additional properties.

Target location

Parameter	Description
Bootstrap Server/Broker List	Comma separated list of Kafka brokers.
Security Protocol	Security protocol for Kafka. Default value is `NO_AUTH`.
SASL Mechanisms	SASL Mechanism for authentication. Default value is `NO_AUTH`.
Credentials	How to provide your credentials. You can select: `Databricks Secrets`, `Username & Password`, `Environment variables`, or `None`
Kafka topic	Comma separated list of Kafka topics.
Message Unique Key (Optional)	Key to help determine which partition to write the data to. Used for message partitioning.
Use SSL Trust Store	Enable SSL trust store configuration. When enabled, requires Trust Store Location and Trust Store Password.
Trust Store Location	Path to the SSL trust store file. Required when SSL Trust Store is enabled.
Trust Store Password	Password for the SSL trust store file. Required when SSL Trust Store is enabled.

Target properties

Property name	Description	Default
Kerberos service name for Kafka SASL	Name of your Kerberos service to use in Kafka.	None

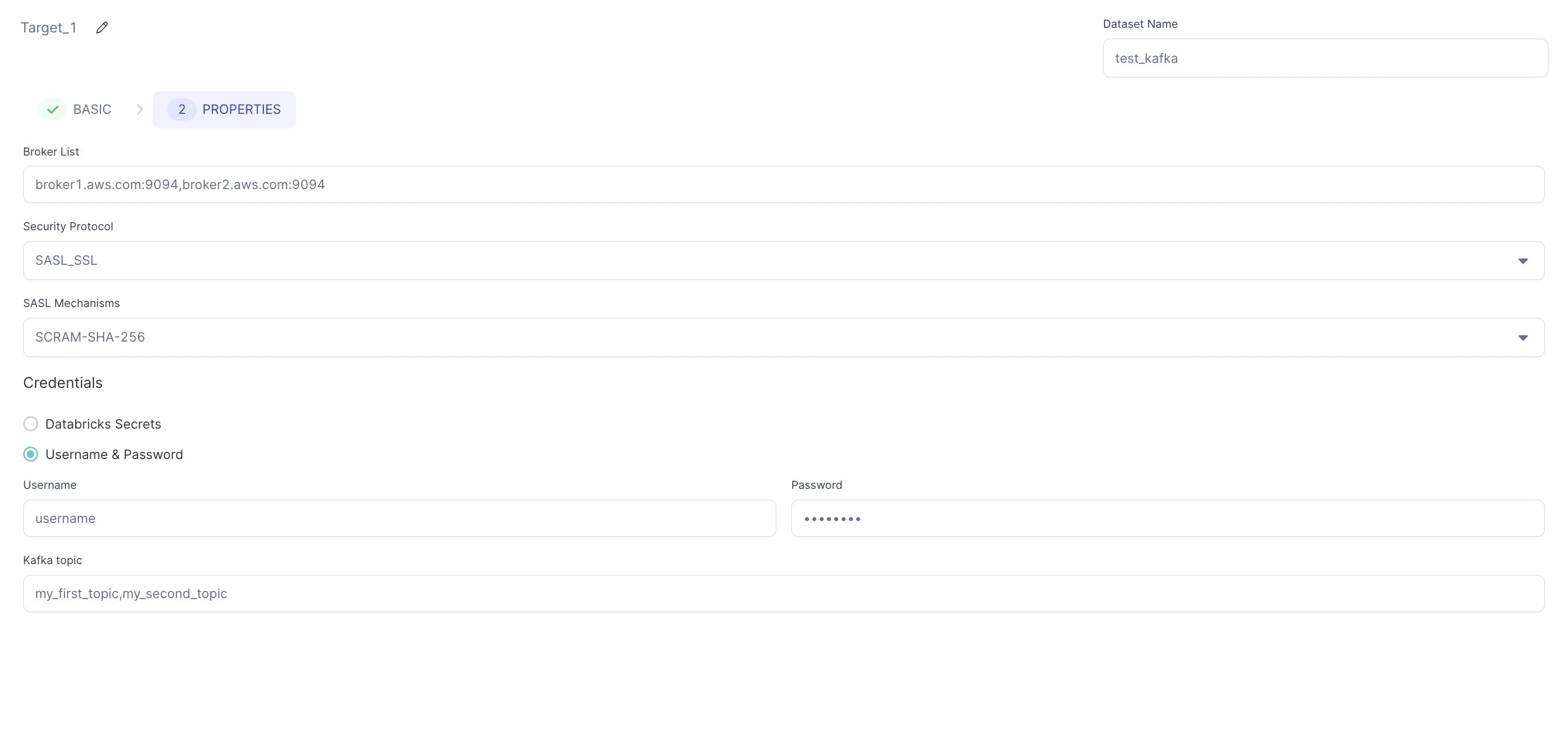

Example

Compiled code

To see the compiled code of your project, switch to the Code view in the project header.

def KafkaTarget(spark: SparkSession, in0: DataFrame):
 df1 = in0.select(to_json(struct("*")).alias("value"))
 df2 = df1.selectExpr("CAST(value AS STRING)")
 df2.write\
 .format("kafka")\
 .options(
 **{
 "kafka.security.protocol": "NO_AUTH",
 "kafka.sasl.mechanism": "NO_AUTH",
 "kafka.bootstrap.servers": "broker1.aws.com:9094,broker2.aws.com:9094",
 "topic": "my_first_topic,my_second_topic",
 "kafka.ssl.truststore.location": "dbfs:/Volumes/tmp/kafka.client.truststore.jks",
 "kafka.ssl.truststore.password": "password",
 }
 )\
 .save()

Example Pipeline

Source Pipeline Example

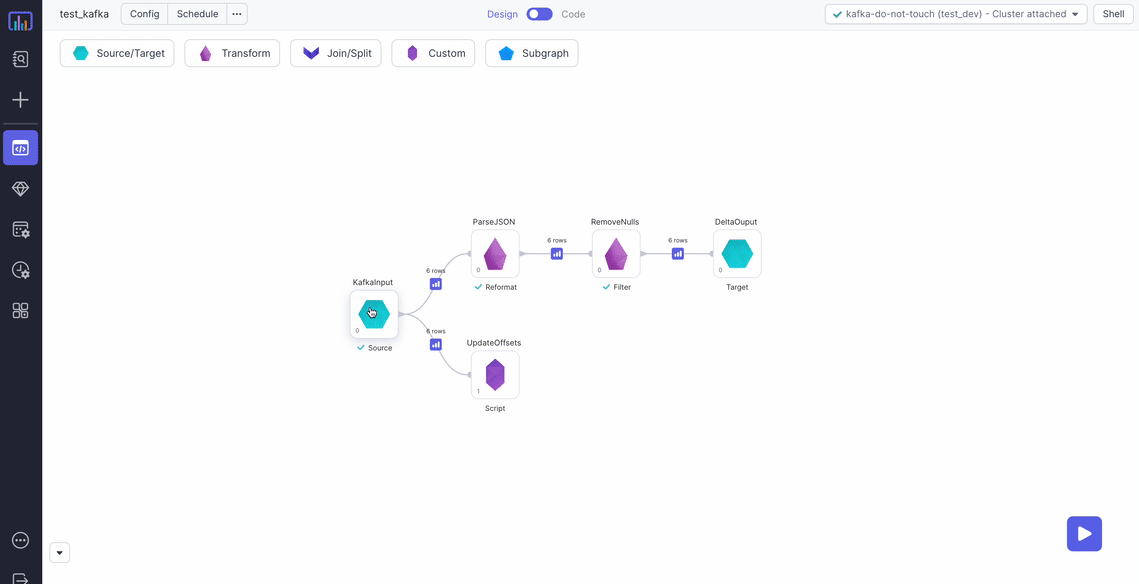

In this example, you read JSON messages from Kafka, parse them, remove any null messages, and persist the data to a Delta table.

To see the compiled code of your project, switch to the Code view in the project header.

Metadata Table

To avoid reprocessing messages on subsequent pipeline runs, update a table with the last processed offsets for each Kafka partition and topic. When you run the pipeline, the table only gets a batch of messages that arrived since the previously-processed offset. In this example, you update metadata.kafka_offsets, which has the following structure:

topic	partition	max_offset
my_first_topic	0	10
my_first_topic	1	5
my_second_topic	0	10
my_second_topic	1	5

Taking this approach provides you the with following benefits:

Builds the pipeline interactively without committing any offsets.
Production workflows only consume messages that arrived since the previously-processed offset.
You can replay old messages by modifying the Metadata table.

For production workflows the phase for the Script gem that updates the offsets should be greater than the phase of the Target gem. This ensures that offsets only update in the table after Prophecy safely persists the data to the Target.

Spark Code used for script component

To see the compiled code of your project, switch to the Code view in the project header.

def UpdateOffsets(spark: SparkSession, in0: DataFrame):

 if not ("SColumnExpression" in locals()):
 from delta.tables import DeltaTable
 import pyspark.sql.functions as f
 metadataTable = "metadata.kafka_offsets"
 metaDataDf = in0.groupBy("partition", "topic").agg(f.max(f.col("`offset`").cast("int")).alias("max_offset"))

 if not spark.catalog._jcatalog.tableExists(metadataTable):
 metaDataDf.write.format("delta").mode("overwrite").saveAsTable(metadataTable)
 else:
 DeltaTable\
 .forName(spark, metadataTable)\
 .alias("target")\
 .merge(
 metaDataDf.alias("source"),
 (
 (col("source.`partition`") == col("target.`partition`"))
 & (col("source.`topic`") == col("target.`topic`"))
 )
 )\
 .whenMatchedUpdateAll()\
 .whenNotMatchedInsertAll()\
 .execute()
