Filter gem for Data Engineering

Dependencies & cluster requirements

Dependencies:

ProphecySparkBasicsPython 0.0.1+
ProphecySparkBasicsScala 0.0.1+

Cluster requirements:

UC dedicated clusters 14.3+ supported
UC standard clusters 14.3+ supported
Livy clusters 3.0.1+ supported

Filters a DataFrame based on the provided filter condition.

Parameters

Parameter	Description	Required
DataFrame	Input DataFrame on which the filter condition will be applied.	True
Filter Condition	BooleanType column or boolean expression. Supports SQL, Python and Scala expressions.	True

Use the visual language syntax to call configuration variables in the Filter gem.

Example

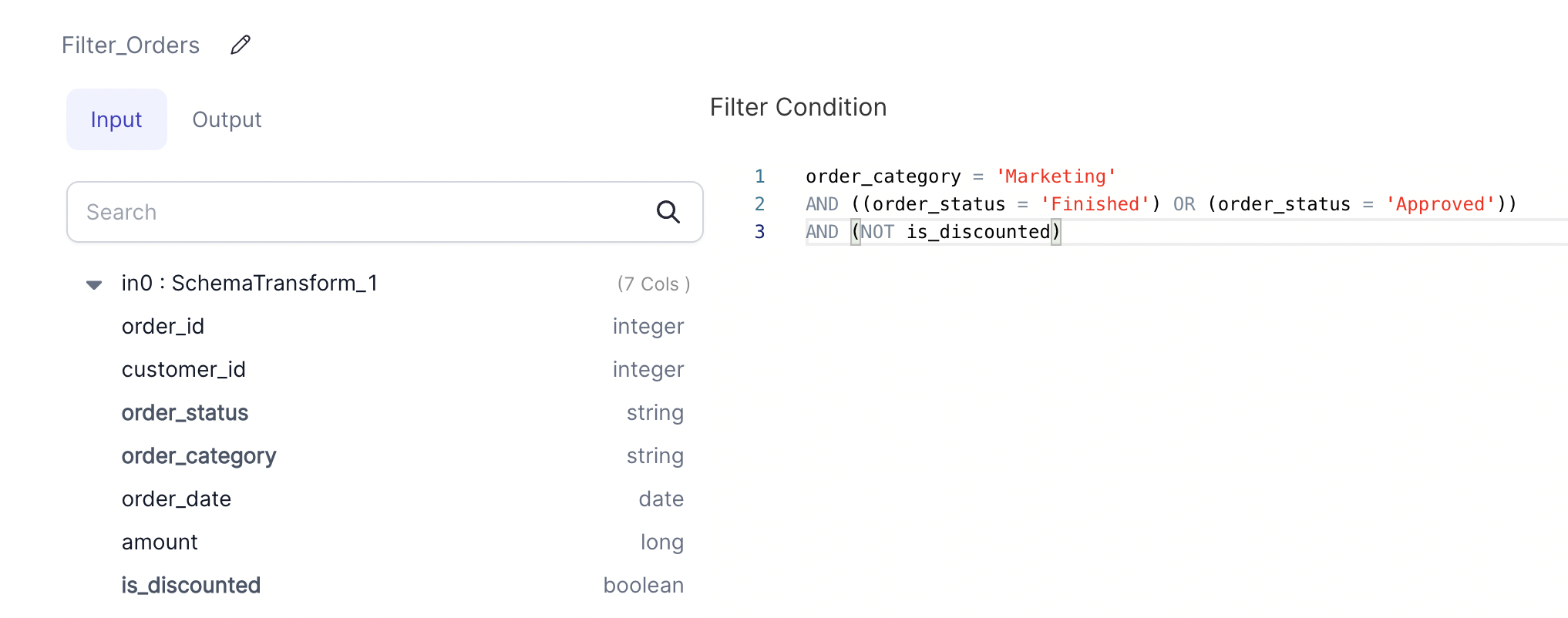

In this example, the Filter gem is used to return only marketing orders that are either finished or approved, while excluding any orders that have been discounted.

The Filter gem configuration translates into the Spark code shown below, which applies the same filtering logic.

Spark code

def Filter_Orders(spark: SparkSession, in0: DataFrame) -> DataFrame:
 return in0.filter(
 (
 ((col("order_category") == lit("Marketing"))
 & ((col("order_status") == lit("Finished")) | (col("order_status") == lit("Approved"))))
 & ~ col("is_discounted")
 )
 )

object Filter_Orders {

 def apply(spark: SparkSession, in: DataFrame): DataFrame =
 in.filter(
 (
 col("order_category") === lit("Marketing"))
 .and(
 (col("order_status") === lit("Finished"))
 .or(col("order_status") === lit("Approved"))
 )
 .and(!col("is_discounted"))
 )
}
