Dependencies:
  • ProphecySparkBasicsPython 0.0.1+
  • ProphecySparkBasicsScala 0.0.1+
Cluster requirements:
  • UC dedicated clusters 14.3+ supported
  • UC standard clusters 14.3+ supported
  • Livy clusters 3.0.1+ supported
Transforms one or more column names or values by using expressions and/or functions. It’s useful when we need to extract only the required columns or make changes column-wise.

​
Parameters

ParameterDescriptionRequired
DataFrameInput DataFrame on which changes are requiredTrue
Target columnOutput column nameFalse
ExpressionExpression to compute target columnRequired if a Target column is present
If no columns are selected, then all columns are passed through to the output

​
Example

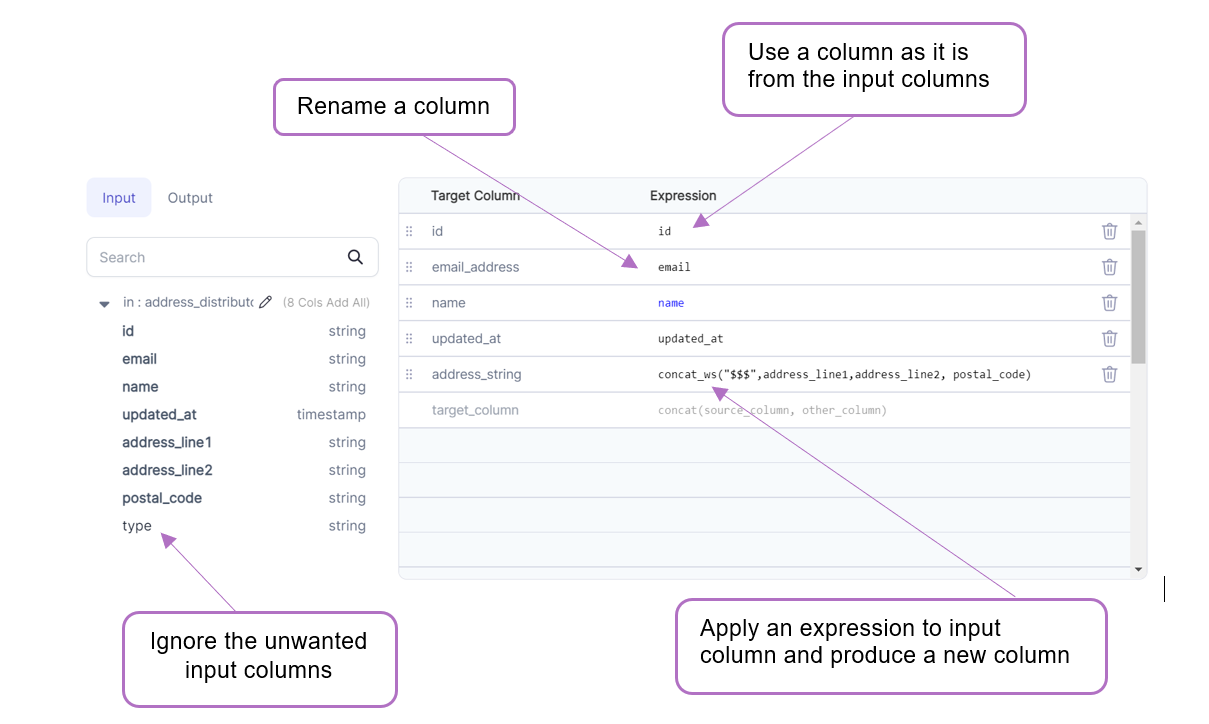

Example usage of Reformat

​
Spark Code

Reformat converts to a SQL Select or in relational terms into a projection, unlike SchemaTransform gem which uses underlying withColumn construct
def Reformat(spark: SparkSession, in0: DataFrame) -> DataFrame:
 return in0.select(
 col("id"),
 col("email").alias("email_address"),
 col("name"),
 col("updated_at"),
 concat_ws("$$$", col("address_line1"), col("address_line2"), col("postal_code"))
 .alias("address_string")
 )

​
Advanced Import

The Advanced Import feature allows you to bulk import statements that are structured similarly to CSV/TSV files. This can be useful if you have your expressions/transformation logic in another format and just want to quickly configure a Reformat gem based on this logic.

​
Using Advanced Import

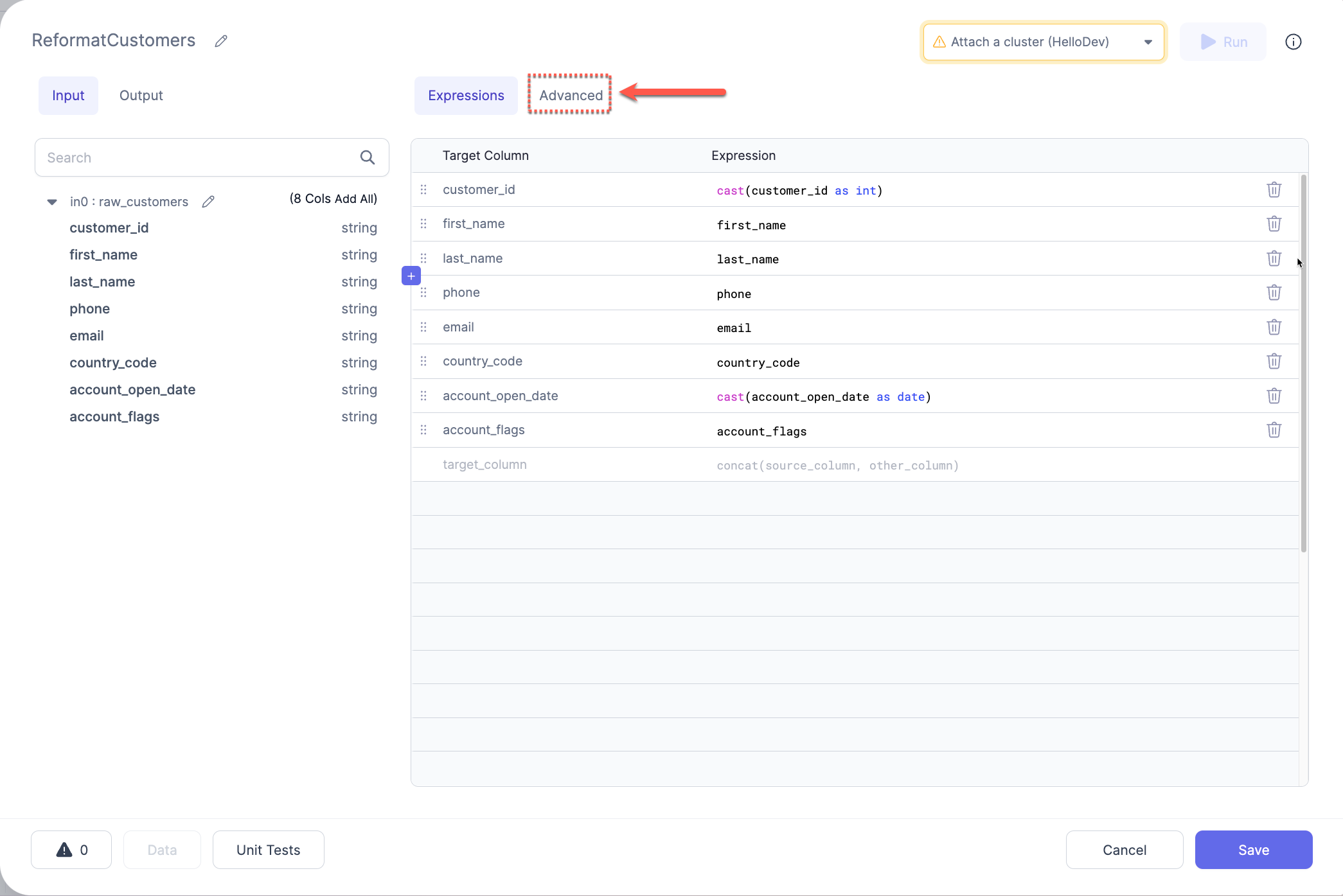

  1. Click the Advanced button in the `Reformat UI Advanced import toggle

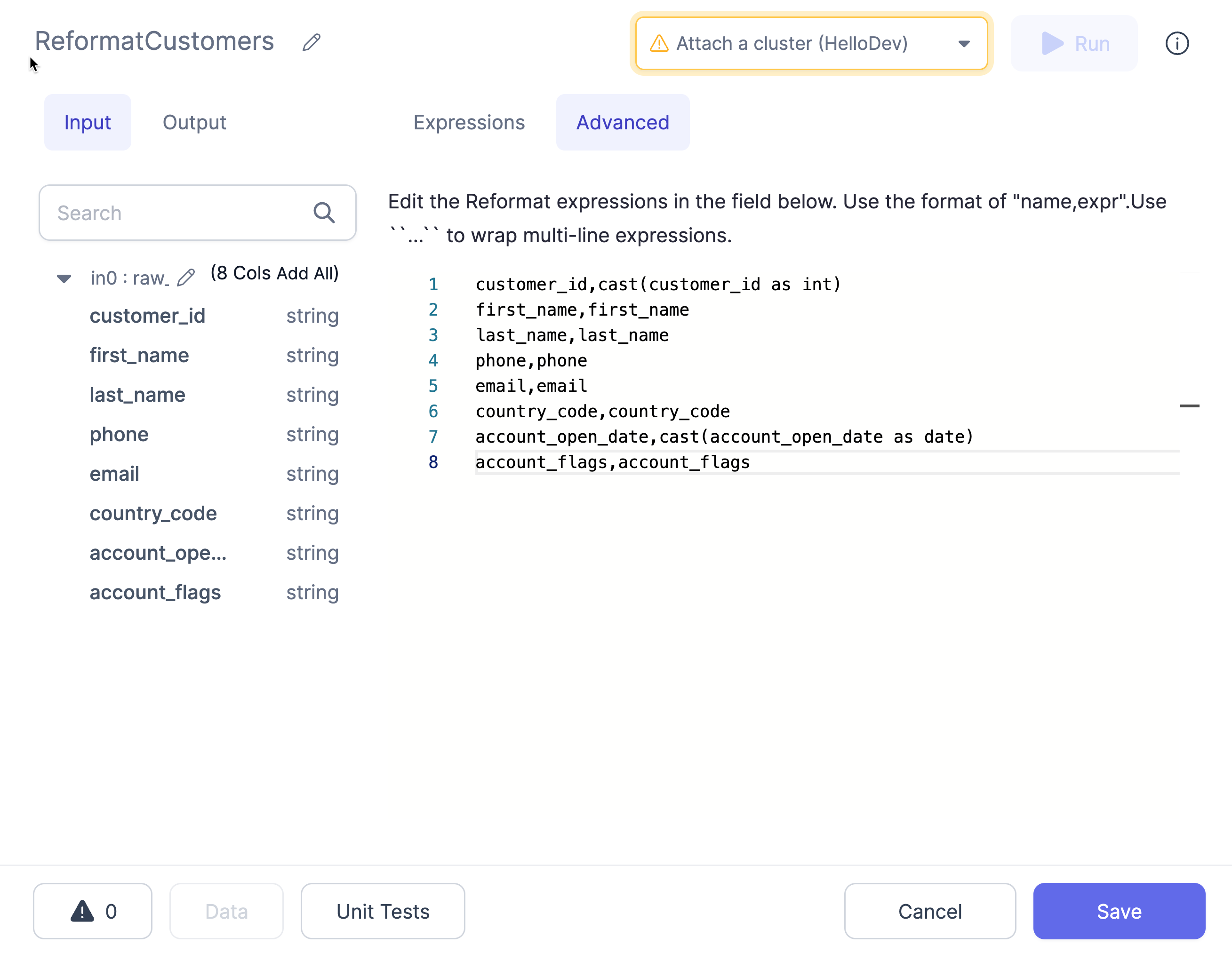

  2. Enter the expressions into the text area using the format as described below: Advanced import mode
  3. Use the button at the top (labeled Expressions) to switch back to the expressions view. This will translate the expressions from the CSV format to the table format and will show any errors detected.

​
Format

The format of these expressions is target_name,target_expr, where target_name is the desired new column name and target_expr is the Spark expression that will be used to generate the new column.
For target_expr values that contain a comma , or span multiple lines, you must surround them by `` on either side. For example:
customer_id,customer_id
full_name,``concat(first_name, ' ', last_name)``
